Supplier number:
REMA 0170001-6
|
EAN
8717365096228
231.86
tax incl.
€191.62 excl. VAT (incl. all environmental contributions)
Safe and controlled lifting
Practical benefits- Generous 6M lifting height: With the Rema chain hoist, you lift heavy components across an extended 6M working range.
- Robust 500KG load capacity: You handle loads up to 500 kg with confidence thanks to the reliable double-pawl safety mechanism.
- Low manual operating effort: The smooth gear design ensures you need minimal pulling force when hoisting heavy equipment.
In a nutshell

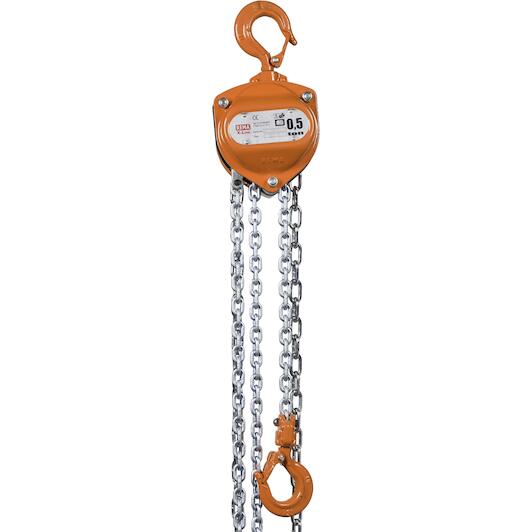

The right choise forWith the Rema X-Line x-ch manual chain hoist, you safely lift heavy equipment and materials up to 500 kg across an extended 6 m height. Its smooth transmission ensures minimal pulling effort on the hand chain, making it ideal for maintenance, assembly, and rigging tasks in workshops or on job sites without an electrical power supply. The integrated double pawl system, asbestos-free brake discs, and durable hooks with safety latches provide dependable security throughout every lift. Fitted with a galvanized Grade 8 load chain and galvanized hand chain, this hoist lets you position heavy components with total precision.
Product information
Key features according to our expert
- Max. weight: 500 kg
- Length: 6 m
All Features
- Max. weight
- 500 kg
- Length
- 6 m
- Number of lots
- 1
- Lifting height
- 6 m
- Building height
- 280 mm
- Hand force maximum
- 24.9 kg
- Weight
- 14.80 kg

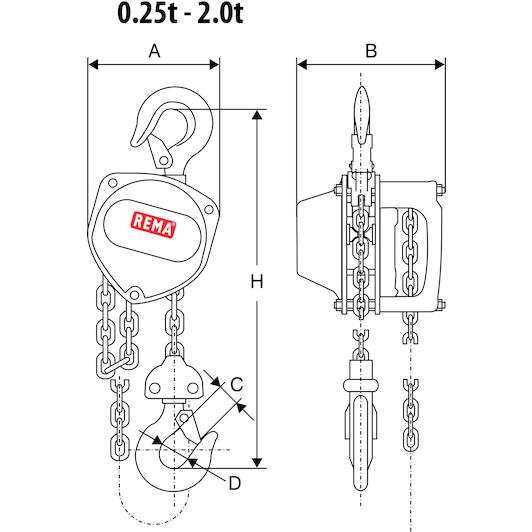

- A
- 130 mm
- H
- 280 mm
- Safe working load
- 500 kg
- D
- 34 mm
- B
- 128 mm
- C
- 22 mm
- Load chain dxt
- 5.0 x 15.0 mm
- Brand REMA
- EAN 8717365096228
- Supplier number REMA 0170001-6
Frequently asked questions about this product
Answered by specialists
- What is the maximum load capacity of this manual chain hoist?
- The Rema X-CH has a maximum lifting capacity (WLL) of 500 kg (0.5 tonnes).
- What is the lifting height of this model?
- This specific variant features a lifting height of 6 m.
- How is this hoist operated?
- It is a manual chain hoist operated by pulling the galvanized hand chain. No power source is required.
- What safety features are built into this hoist?
- The hoist is equipped with a double pawl system, asbestos-free brake discs, and top and bottom hooks with safety latches.
- What type of chain is fitted on this unit?
- It comes fitted with a wear-resistant galvanized load chain (Grade 8) and a galvanized hand chain.
