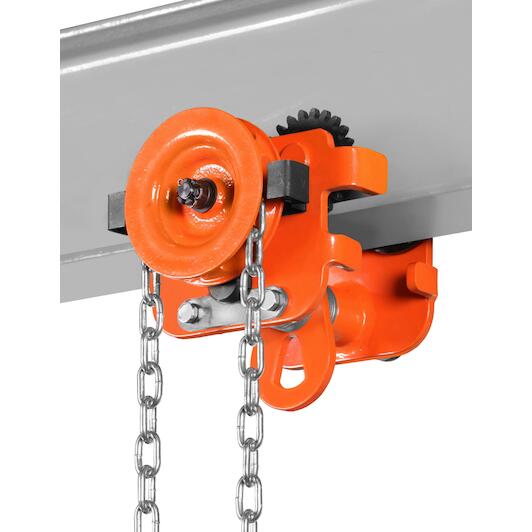

Product description:
- Suitable for various profiles, both for flat or bevel flange.
Properties:
- With solid twisted steel wheels with maintenance-free bearings.
- Adjustable flange width by setting rings.
- Short height in combination with REMA hand hoists S-2OD by intermediate link (option), which replaces the top hook.
- Wheel break and anti-tilt supports for higher safety.
- The REMA Trolleys are made from high quality steel.
- Maintenance free and user friendly.
Standard delivery:
- 3 meter hand control chain.
Option:
Key features according to our expert
-
Max. working load: 1 t
-
Min. width: 55 mm
-
Max. width: 140 mm
Specifications / All features
-
Brand:
REMA
-
02373664
-
EAN:
8717365260339
-
Supplier number:
REMA 0925003
- Max. working load
- 1 t
- Min. width
- 55 mm
- Max. width
- 140 mm

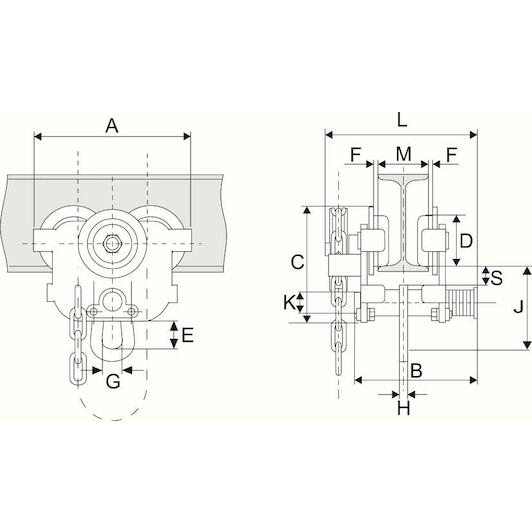

- L
- 254 mm
- G
- 32 mm
- K
- 32 mm
- Weight
- 12.4 kg
- E
- 30 mm
- A
- 242 mm
- H
- 10 mm
- D
- 68 mm
- Safe working load
- 1000 kg
- F
- 1.5~3 mm
- Min. radius
- 1000 mm
- B
- 211 mm
- J
- 118 mm
- Flange width
- 55-140 mm
- C
- 174 mm
- S
- 28 mm
