Supplier number:
REMA 3063003
|
EAN
8717365025587
120.95
tax incl.
€99.96 excl. VAT (incl. all environmental contributions)

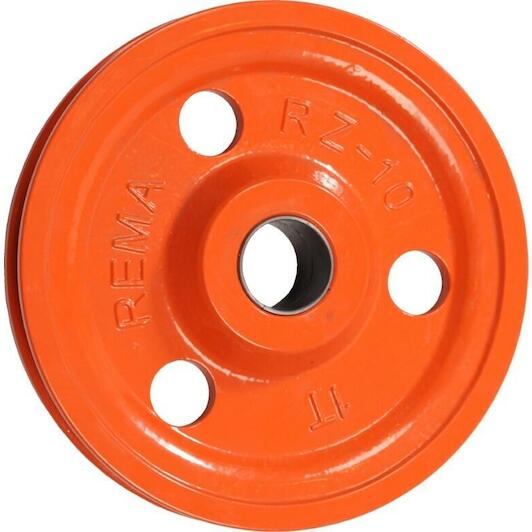

Reliable lifting with Rema RZ-1.0
Practical benefits- Strong load capacity: You move heavy loads safely with a maximum working load limit of up to 1 tonne.
- Smooth wire rope guidance: The 235 mm diameter sheave accepts 8 to 10 mm cables to minimize rope wear.
- Accurate shaft fitting: With the 22 mm bore size, you easily mount this sheave into your existing setup.
In a nutshell
The right choise forWith the Rema RZ-1.0 wire rope sheave, you guide heavy loads smoothly and reliably within your hoisting and winching setups. This heavy-duty sheave delivers a maximum load capacity of 1 tonne (1000 kg) and is built for both manual and mechanical applications. Thanks to the 235 mm sheave diameter designed specifically for 8 to 10 mm steel cables, you significantly reduce friction and rope wear. Featuring a 22 mm bore size, it fits seamlessly into existing pulley blocks and lifting structures, giving you complete control during every lift.
Product information
Key features according to our expert
- (Disc) diameter: 235 mm
- Bore size: 22 mm
- Min. cable diameter: 8 mm
- Max. cable diameter: 10 mm
- Max. weight: 1 t

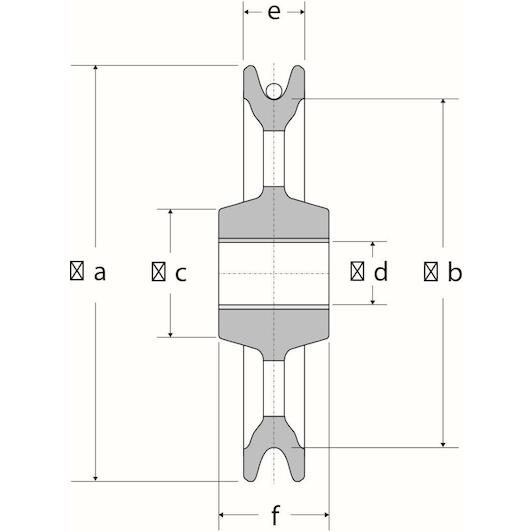

All Features
- (disc) diameter
- 235 mm
- Bore size
- 22 mm
- Min. cable diameter
- 8 mm
- Max. cable diameter
- 10 mm
- Max. weight
- 1 t
- D
- 40 mm
- Safe working load operated mechanically
- 500 kg
- Cable diameter
- 8 - 10 mm
- Weight
- 6.0 kg
- E
- 32 mm
- A
- 235 mm
- C
- 78 mm
- F
- 50 mm
- B
- 200 mm
- Safe working load manually
- 1000 kg
- Brand REMA
- EAN 8717365025587
- Supplier number REMA 3063003
Frequently asked questions about this product
Answered by specialists
- Which cable diameters are suitable for the REMA RZ-1.0?
- This wire rope sheave is designed for steel cables with a diameter from 8 to 10 mm.
- What is the maximum load capacity of this wire rope sheave?
- The REMA RZ-1.0 has a maximum working load limit of 1 t (1000 kg).
- What are the dimensions of the sheave and the axle hole?
- The outer diameter of the sheave is 235 mm and the axle hole is 22 mm.
- Is this wire rope sheave suitable for mechanical use?
- Yes, this loose wire rope sheave is suitable for both manual and mechanical applications.
