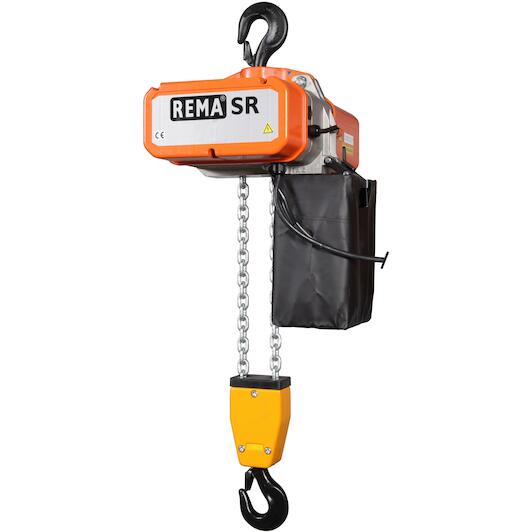

REMA SR091/55 electric chain hoist 400V/24V controlled 3.2 t, with hoisting speed 4/1 m/min, hoisting height 4m - 0861046-4

Show more features

Max. weight

3200 kg

Length

4 m

Fem 9.511 hoist motor

2m

(a) larger chain box up to hoisting height

9 m

Lifting motor

3/0.75 kW

Hoisting speed

4/1 m/min

Standard chain magazine lifting height max.

5 m

Load chain dxt

9.0 x 27 mm

H2

680 mm

Number of lots

2

Lifting height

4 m

Operating height

2,8 m

Trolley type

3200

Switch-on time

60/25/240 ED%-sch/h

Weight

88 kg

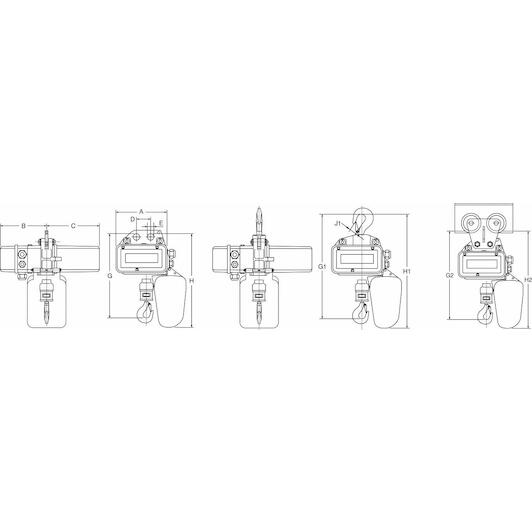

G

723 mm

A

359 mm

H

746 mm

Safe working load

3200 kg

B

283 mm

J

30 mm

C

359 mm

G2

655 mm
