SKF

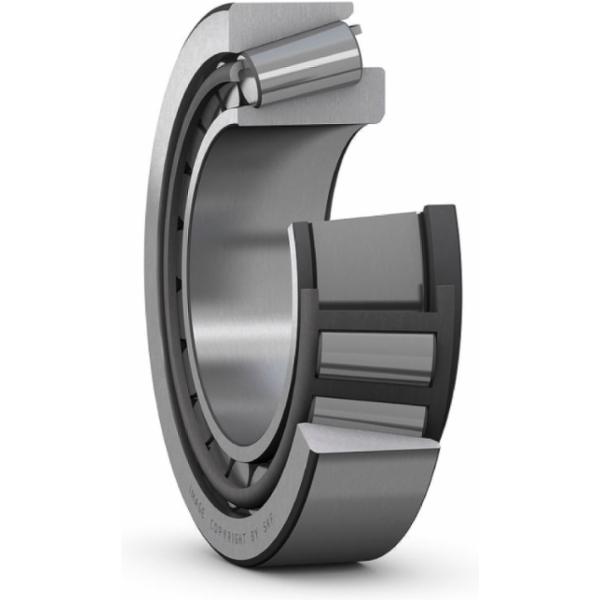

SKF 02872/2/02820/2/Q single-row tapered roller bearing 28.5 x 73 x 22.22 mm with contact angle 16.8°

This article is not available

Product description:

  • Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
  • Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
  • The axial load carrying capacity of bearings is largely paid for by the contact angle
  • The larger this angle is, the higher the axial load carrying capacity is
  • Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
  • Inner diameter: 28,575 mm
  • Width: 22,22 mm
  • Number of rows: 1
  • Outer diameter: 73,025 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316573301011
  • Supplier number: SKF 02872/2/02820/2/Q
Inner diameter
28,575 mm
Width
22,22 mm
Number of rows
1
Outer diameter
73,025 mm
Arrangement of contact angle (double-row bearing)
Not applicable
Cage
Sheet metal
Width, outer ring
17.462 mm
Lubricant
None
Reference speed
7,000 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
69.5 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Contact angle
16.833333333375 °
Width, total
22.225 mm
Width, inner ring
22.225 mm
Limiting speed
9,500 r/min
Bore diameter
28.575 mm
Basic dynamic load rating
57.2 kN
Coating
Without
Outside diameter
73.025 mm
Bore type
Cylindrical
