What are the dimensions of this SKF ball bearing?

The bearing has a 45 mm bore diameter, an 85 mm outside diameter, and a width of 19 mm.

What is the main benefit of a self-aligning ball bearing?

With two rows of balls, it automatically accommodates shaft deflections and angular misalignment.

What bore type does the 1209 ETN9 bearing feature?

It has a standard cylindrical bore designed for direct mounting onto a 45 mm straight shaft.

What material is used for the bearing cage?

The cage (indicated by suffix TN9) is made of glass-fibre reinforced polyamide.

Does this bearing come with built-in seals?

No, this is an open bearing without integrated seals, designed for external lubrication systems.

SKF 1209 ETN9 double-row self-aligning ball bearing cylindrical 45x85x19 mm

Supplier number: SKF 1209 ETN9 | EAN 7316576623288

Recommended Retail Price €116.37

57.60 tax incl.

€47.60 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with automatic alignment

Practical benefits

Automatic compensation of misalignments: You accommodate shaft deflections and angular errors effortlessly with two rows of balls on a spherical raceway.
Low friction high speed: The specialized Skf design reduces operational heat, allowing you to run rotating equipment smoothly at high speeds.
Quiet running polymer cage: The durable polyamide cage spaces the rolling elements evenly, reducing vibration and noise during intensive operation.

In a nutshell

The right choise for

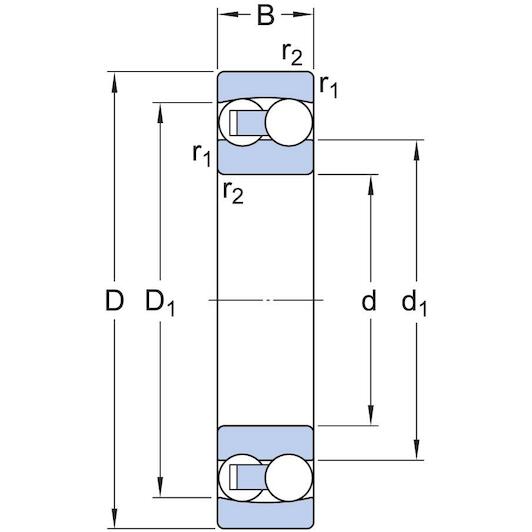

With the Skf 1209 ETN9 self-aligning ball bearing, you keep machinery running smoothly and reliably, even when facing shaft deflection or misalignment. Thanks to two rows of balls running on a spherical outer raceway, this open bearing accommodates angular errors automatically. The glass-fibre reinforced polyamide cage ensures low-friction operation, keeping your equipment cooler at high speeds while minimizing vibrations and noise. Featuring a 45 mm cylindrical bore, an 85 mm outside diameter, and a 19 mm width, it mounts directly onto straight shafts in industrial drivetrains, blowers, and conveyor systems.

Product information FAQ

€57.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 45 mm
Width: 19 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 85 mm

Product description

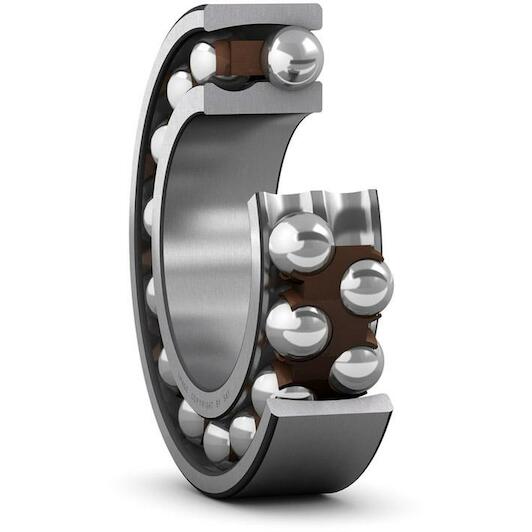

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 45 mm
Width: 19 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 85 mm
Basic static load rating: 7.8
Tolerance class: Normal
Retaining feature, inner ring: None
Radial internal clearance: CN
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 17000
Lubricant: None
Sealing: Without
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Coating: Without
Limiting speed: 11000
Bore diameter: 45
Basic dynamic load rating: 22.9
Outer diameter: 85

Brand SKF
01030030
EAN 7316576623288
Supplier number SKF 1209 ETN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: The bearing has a 45 mm bore diameter, an 85 mm outside diameter, and a width of 19 mm.
What is the main benefit of a self-aligning ball bearing?: With two rows of balls, it automatically accommodates shaft deflections and angular misalignment.
What bore type does the 1209 ETN9 bearing feature?: It has a standard cylindrical bore designed for direct mounting onto a 45 mm straight shaft.
What material is used for the bearing cage?: The cage (indicated by suffix TN9) is made of glass-fibre reinforced polyamide.
Does this bearing come with built-in seals?: No, this is an open bearing without integrated seals, designed for external lubrication systems.
