What are the dimensions of this SKF bearing?

The bearing has a 60 mm bore, a 110 mm outer diameter, and a width of 22 mm.

What is the purpose of the self-aligning design?

The double row of balls accommodates angular misalignment and shaft deflections smoothly.

What material is the cage made from?

The ETN9 cage is made of glass-fibre reinforced polyamide.

What internal radial clearance does this bearing have?

This bearing features standard normal radial internal clearance (CN).

Is this bearing sealed?

No, this is an open bearing without built-in seals.

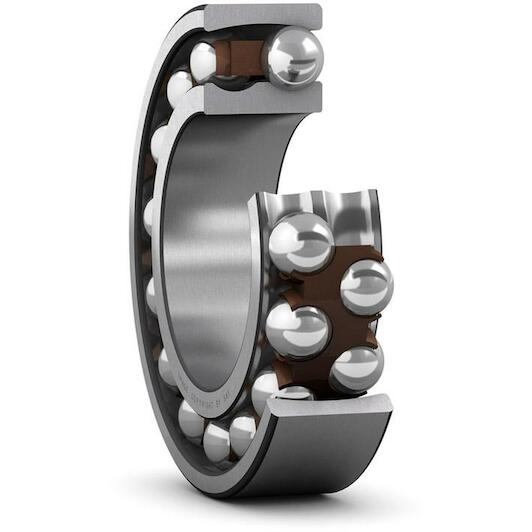

SKF 1212 ETN9 double-row self-aligning ball bearing cylindrical 60x110x22 mm

Supplier number: SKF 1212 ETN9 | EAN 7316576625008

Recommended Retail Price €197.69

97.80 tax incl.

€80.83 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable alignment with Skf

Practical benefits

Automatic compensation for misalignment: Two rows of balls in a spherical raceway allow you to accommodate shaft deflections and angular misalignment without added stress.
Smooth performance at high speeds: The lightweight ETN9 polyamide cage reduces internal friction, ensuring your machinery runs cooler and quieter under demanding conditions.
Straightforward cylindrical mounting: With its precision 60 mm cylindrical bore, you mount the bearing directly and securely onto standard machine shafts.

In a nutshell

The right choise for

With the Skf 1212 ETN9 double row self-aligning ball bearing, you effortlessly compensate for shaft deflections and angular misalignments in your machinery. The two rows of balls running in a spherical outer raceway accommodate alignment errors smoothly without excessive friction or stress peaks. Its lightweight, glass-fibre reinforced polyamide ETN9 cage minimizes friction and heat generation, ensuring smooth, quiet, and efficient operation at high speeds. Featuring a precision 60 mm cylindrical bore, a 110 mm outer diameter, a 22 mm width, and normal radial clearance CN, this open bearing mounts directly and securely onto the shafts of your pumps, fans, and conveyor systems.

Product information FAQ

€97.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 22 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 110 mm

Product description

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Width: 22 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 110 mm
Basic static load rating: 12.2
Tolerance class: Normal
Retaining feature, inner ring: None
Radial internal clearance: CN
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 12000
Lubricant: None
Sealing: Without
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Coating: Without
Limiting speed: 8000
Bore diameter: 60
Basic dynamic load rating: 31.2
Outer diameter: 110

Brand SKF
01030036
EAN 7316576625008
Supplier number SKF 1212 ETN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The bearing has a 60 mm bore, a 110 mm outer diameter, and a width of 22 mm.
What is the purpose of the self-aligning design?: The double row of balls accommodates angular misalignment and shaft deflections smoothly.
What material is the cage made from?: The ETN9 cage is made of glass-fibre reinforced polyamide.
What internal radial clearance does this bearing have?: This bearing features standard normal radial internal clearance (CN).
Is this bearing sealed?: No, this is an open bearing without built-in seals.
