SKF 140X170X12 CRW1 R radial shaft seal with metal housing and Wave-lip, for oil or grease

Recommended Retail Price €69.54

34.80 tax incl.

€28.76 excl. VAT (incl. all environmental contributions)

SKF 140X170X12 CRW1 R radial shaft seal with metal housing and Wave-lip, for oil or grease

€34.80 Recommended Retail Price €69.54

On order: delivered from 27/05/2026

each

Ordered before 20:00 - delivered as of 27/05/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

Product information

Product description

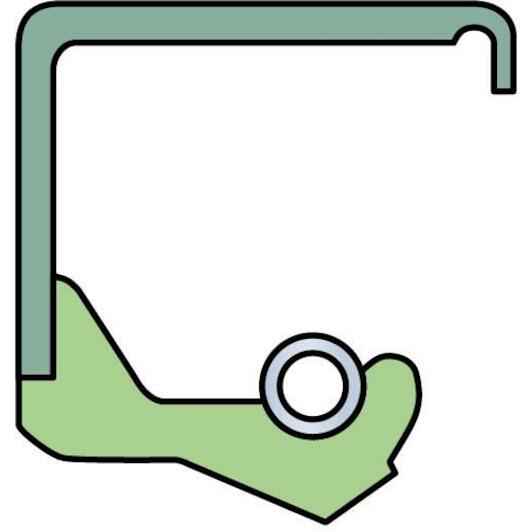

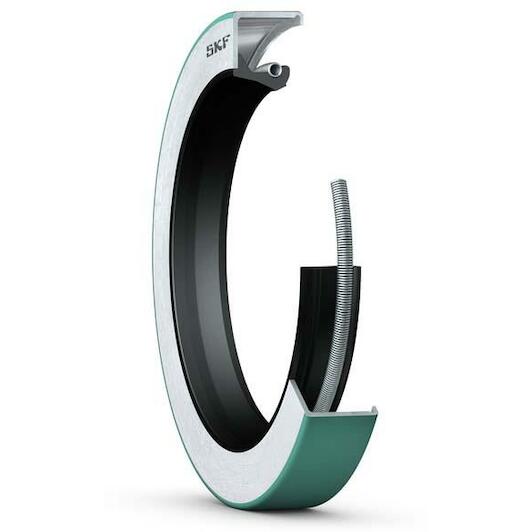

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRW1 seals are designed with a metal case, an SKF WAVE lip made of elastomer with higher pumping rate to reduce heat generation, and a garter spring to optimize sealing against the shaft. Most of the seals feature the SKF Bore Tite coating on the outside diameter that helps fill small imperfections in the housing bore.

For oil or grease
With garter spring
WAVE lip creates higher pumping rate
WAVE lip has less friction between shaft and lip
WAVE lip has a lower temperature at the contact point

Key features according to our expert

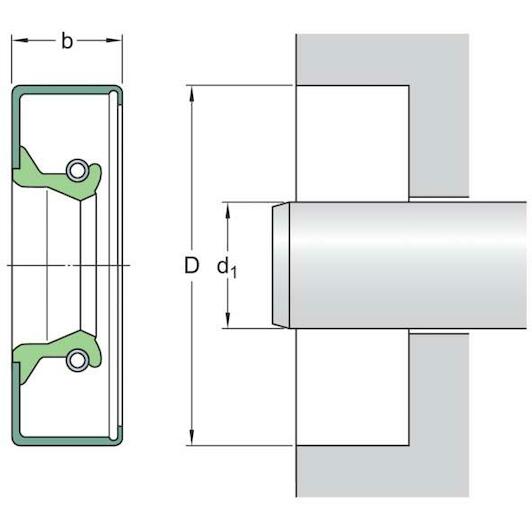

Inner diameter: 140 mm
Width: 12 mm
Material: NBR - Nitrile-Butadiene Rubber - Nitrile
With dust lip: No
Version (radial oil seal according to DIN 3760): B
Outer diameter: 170 mm

Specifications / All features

Brand: SKF
08125019
EAN: 00085311038201
Supplier number: SKF 140X170X12 CRW1 R

Inner diameter: 140 mm
Width: 12 mm
Material: NBR - Nitrile-Butadiene Rubber - Nitrile
With dust lip: No
Version (radial oil seal according to din 3760): B
Outer diameter: 170 mm
Auxiliary lip: No
Minimum operating temperature: -40
Rotational speed: 1620
Type of outside diameter: Metal-cased with sealant coating on the outside diameter
Unit system: Metric
Seal width: 12
Maximum operating temperature: 100
Housing bore diameter: 170
Limiting speed: 1620
Design: CRW1
Sealing lip material: Nitrile rubber (NBR)
Shaft diameter: 140
Permissible circumferential speed: 12
