What are the exact dimensions of this Skf 16005 deep groove ball bearing?

The bearing has an inside diameter of 25 mm, an outside diameter of 47 mm, and a width of 8 mm.

Does this Skf 16005 bearing have seals?

No, this is an open ball bearing without seals, suitable for applications with external lubrication.

What radial internal clearance does this bearing have?

This bearing has standard normal radial clearance (CN), suitable for standard operating temperatures and speeds.

What type of bore does this deep groove ball bearing have?

The bearing has a 25 mm cylindrical bore for direct mounting onto a cylindrical shaft.

What loads can the Skf 16005 accommodate?

As a single row deep groove ball bearing, it accommodates both radial and axial loads in both directions.

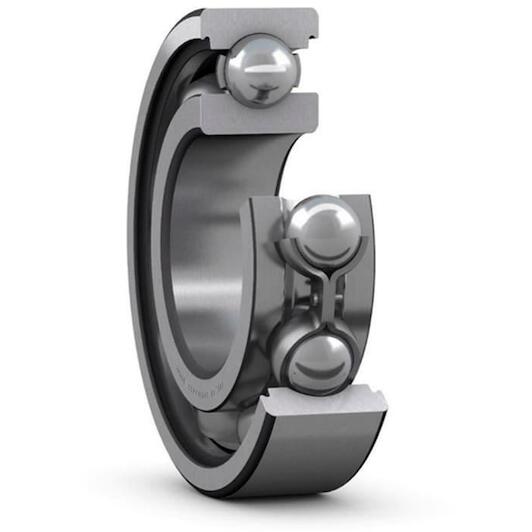

SKF 16005 single-row groove ball bearing cylindrical 25x47x8 mm

Supplier number: SKF 16005 | EAN 7316576676611

Recommended Retail Price €28.93

14.20 tax incl.

€11.74 excl. VAT (incl. all environmental contributions)

On order: delivered from 21/10/2026

Ordered before 20:00 - delivered as of 21/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

In a nutshell

The right choise for

With the Skf 16005 single row deep groove ball bearing, you ensure reliable rotational performance even in tightly spaced assemblies. Designed with a slim 8 mm width profile, this durable steel bearing fits neatly into compact machine housings, drivetrains, and electric motors. Its 25 mm cylindrical bore and 47 mm outside diameter allow for direct mounting onto your shaft. The deep groove geometry smoothly accommodates combined radial and light axial loads in both directions. Built with an open design and standard normal radial clearance (CN), it reduces rotational friction for consistent, efficient operation in externally lubricated setups.

Product information FAQ

€14.20

tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 8 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 47 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Avantages

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 8 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 47 mm
Matched arrangement: No
Tolerance class: Class P6 (P6)
Radial internal clearance: CN
Basic static load rating: 4.75
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 32000
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 20000
Bore diameter: 25
Basic dynamic load rating: 8.06
Outer diameter: 47

Brand SKF
01010395
EAN 7316576676611
Supplier number SKF 16005

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this Skf 16005 deep groove ball bearing?: The bearing has an inside diameter of 25 mm, an outside diameter of 47 mm, and a width of 8 mm.
Does this Skf 16005 bearing have seals?: No, this is an open ball bearing without seals, suitable for applications with external lubrication.
What radial internal clearance does this bearing have?: This bearing has standard normal radial clearance (CN), suitable for standard operating temperatures and speeds.
What type of bore does this deep groove ball bearing have?: The bearing has a 25 mm cylindrical bore for direct mounting onto a cylindrical shaft.
What loads can the Skf 16005 accommodate?: As a single row deep groove ball bearing, it accommodates both radial and axial loads in both directions.
