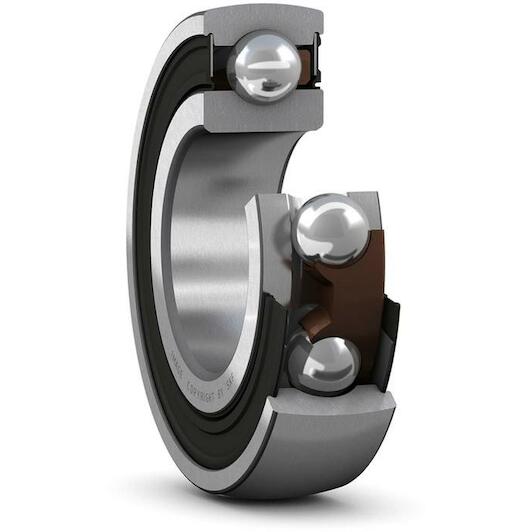

SKF 1726309-2RS1 insert bearing cylindrical with standard inner ring for metric shaft, 45 x 100 mm

SKF
Supplier number: SKF 1726309-2RS1 | EAN 7316577042972
Recommended Retail Price €152.38
75.40 tax incl.
€62.31 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/10/2026

  • Ordered before 20:00 - delivered as of 23/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€75.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 45 mm
  • Width: 25 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: None
  • Outer diameter: 100 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. These insert bearings are suitable for applications where smooth running is a key operational parameter. It can accommodate heavier axial loads than any other insert bearing. The bearings are sealed on both sides, made of sheet steel reinforced NBR, and are fitted in a recess on the outer ring and ride against the inner ring shoulder to act as contact seals.

  • Smooth running
  • Can accommodate havy axial loads
  • Sealed on both sides

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
45 mm
Width
25 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
None
Outer diameter
100 mm
Rubber seating ring
Without
Retaining feature, inner ring
Interference fit
Basic static load rating
31.5
Relubrication feature
Without
Lubricant
Grease
Material, bearing
Bearing steel
Width, outer ring
25
Sealing type
Contact, RS1
Cage
Non-metallic
Outer ring type
Spherical
Rolling elements
Balls
Sealing
Seal on both sides
Limiting speed
4500
Width, total
25
Width, inner ring
25
Shaft diameter
45
Bore diameter
45
Basic dynamic load rating
52.7
Coating
Without
Outer diameter
100
Application
For agricultural applications
  • Brand SKF
  • EAN 7316577042972
  • Supplier number SKF 1726309-2RS1
