What are the dimensions of this spherical roller bearing?

The bearing has a 35 mm bore diameter, an 80 mm outside diameter, and a width of 21 mm.

What type of bore does the SKF 21307 CC have?

This bearing features a cylindrical bore for direct mounting onto a straight shaft.

What internal radial clearance does this bearing have?

This spherical roller bearing has a normal internal radial clearance (class CN).

Does this SKF roller bearing come sealed?

No, this is an open bearing without built-in seals.

What are the main advantages of this spherical roller bearing?

It accommodates high radial and axial loads while compensating for angular misalignment and shaft deflections.

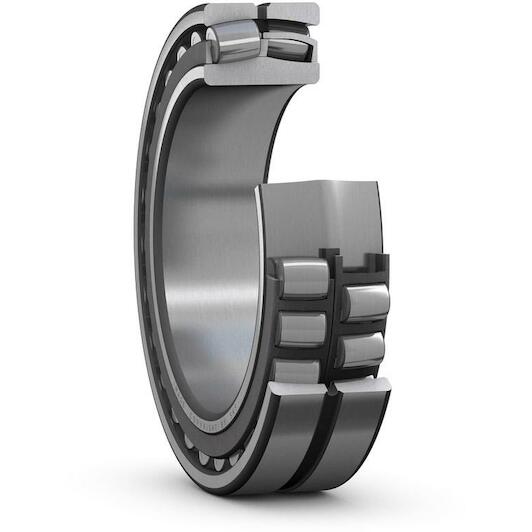

SKF 21307 CC spherical roller bearing cylindrical 35 x 80 x 21 mm

Supplier number: SKF 21307 CC | EAN 7316576651632

Recommended Retail Price €256.07

126.60 tax incl.

€104.63 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 16/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Dependable performance with Skf bearings

Practical benefits

High load carrying capacity: With two rows of spherical rollers, you reliably accommodate heavy radial and axial loads in demanding industrial machinery.
Self-aligning internal design: It accommodates shaft deflection and misalignment smoothly, helping you reduce operating friction and premature mechanical wear.
Simple cylindrical mounting: Featuring a standard 35 mm cylindrical bore, you mount the open bearing directly onto straight machine shafts.

In a nutshell

The right choise for

With the Skf 21307 CC double-row spherical roller bearing, you ensure reliable operation under heavy combined radial and axial loads. Its self-aligning design smoothly accommodates shaft deflection and angular misalignment, keeping friction and mechanical wear to a minimum. Featuring two rows of spherical rollers and a durable sheet brass cage, it delivers long service life in demanding industrial machinery, gearboxes, conveyor systems, and industrial fans. Thanks to its standard 35 mm cylindrical bore and normal radial clearance (CN), you mount this open bearing directly and securely onto straight shafts.

Product information FAQ

€126.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 21 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 80 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. They can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 21 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 80 mm
Reference speed: 8500
Basic static load rating: 72
Relubrication feature: Without
Tolerance class for run-out: P5
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: CN
Basic dynamic load rating: 79.2
Sealing: Without
Limiting speed: 12000
Bore diameter: 35
Outer diameter: 80
Tolerance class for dimensions: Normal

Brand SKF
01090004
EAN 7316576651632
Supplier number SKF 21307 CC

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this spherical roller bearing?: The bearing has a 35 mm bore diameter, an 80 mm outside diameter, and a width of 21 mm.
What type of bore does the SKF 21307 CC have?: This bearing features a cylindrical bore for direct mounting onto a straight shaft.
What internal radial clearance does this bearing have?: This spherical roller bearing has a normal internal radial clearance (class CN).
Does this SKF roller bearing come sealed?: No, this is an open bearing without built-in seals.
What are the main advantages of this spherical roller bearing?: It accommodates high radial and axial loads while compensating for angular misalignment and shaft deflections.
