SKF

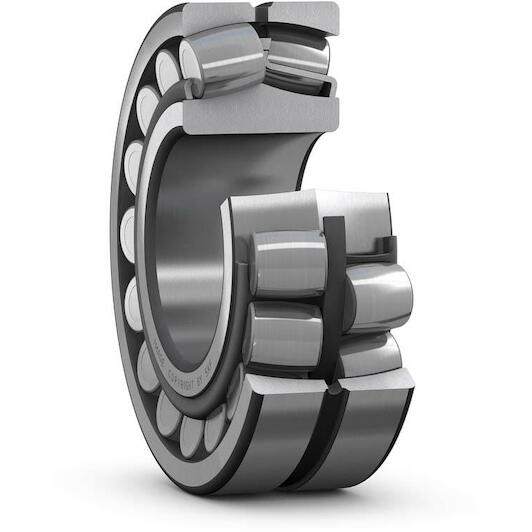

SKF 21320 EK spherical roller bearing tapered roller 100 x 215 x 47 mm

Recommended Retail Price €1,357.15
671.80 tax incl.
€555.21 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 47 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Tapered
  • Outer diameter: 215 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577612557
  • Supplier number: SKF 21320 EK
Inner diameter
100 mm
Width
47 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Tapered
Outer diameter
215 mm
Skf performance class
SKF Explorer
Basic static load rating
490
Relubrication feature
With
Reference speed
3400
Candidate for remanufacturing
Yes
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
CN
Basic dynamic load rating
433
Sealing
Without
Limiting speed
4500
Bore diameter
100
Outside diameter
215
Tolerance class for dimensions
Normal
