Smooth rotation through shaft misalignments
- Automatic alignment defect compensation: The double-row spherical outer raceway effortlessly absorbs static and dynamic angular misalignments during demanding operations.
- Reliable protection against contaminants: Double-sided rubber contact seals retain internal lubricant while keeping dust and moisture out of raceways.
- Simple and secure mounting: The Skf 2210 E-2RS1KTN9/C3 tapered bore enables quick and solid installation using adapter or withdrawal sleeves.
With the Skf 2210 E-2RS1KTN9/C3, you ensure smooth and reliable operation for your rotating equipment, even under shaft deflection or alignment errors. This double-row self-aligning ball bearing easily accommodates angular misalignments without adding extra friction. Its dual 2RS1 rubber contact seals keep internal lubricant firmly in place while blocking out dust and moisture. The tapered bore makes mounting onto shafts fast and secure using an adapter sleeve. In addition, the increased C3 radial clearance prevents internal bearing preloading caused by thermal expansion or higher speeds, keeping your industrial machinery running without unnecessary downtime.
Product description

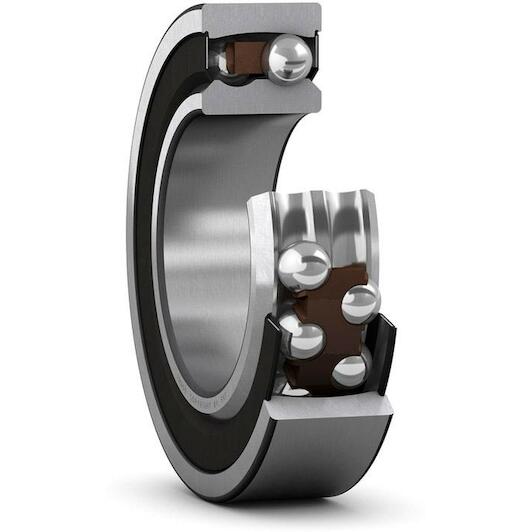

Self-aligning ball bearings, with a tapered bore and seals on both sides, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing. The tapered bore facilitates ease of mounting via adapter/withdrawal sleeves. The integral sealing can prolong bearing service life by keeping lubricant in the bearings and contaminants out.
- Ease of mounting via adapter/withdrawal sleeves
- Accommodate static and dynamic misalignment
- Excellent high-speed and light load performance
- Low friction
- Integral sealing results in reduced maintenance requirements and prolonged bearing service life
