What are the exact dimensions of this SKF bearing?

This ball bearing features an 80 mm bore diameter, a 140 mm outer diameter, and a width of 33 mm.

What does the designation TN9 mean?

The suffix TN9 indicates that the bearing is fitted with a glass-fibre reinforced polyamide PA66 (plastic) cage.

What is the purpose of a self-aligning ball bearing?

It accommodates static and dynamic angular misalignments or shaft deflections thanks to its spherical outer ring raceway.

Is this bearing sealed and pre-lubricated?

No, this is an open bearing without seals or lubricant. You must apply appropriate lubrication during installation.

What bore type and clearance class does this model have?

This model features a cylindrical bore for direct shaft mounting and has standard (CN) radial internal clearance.

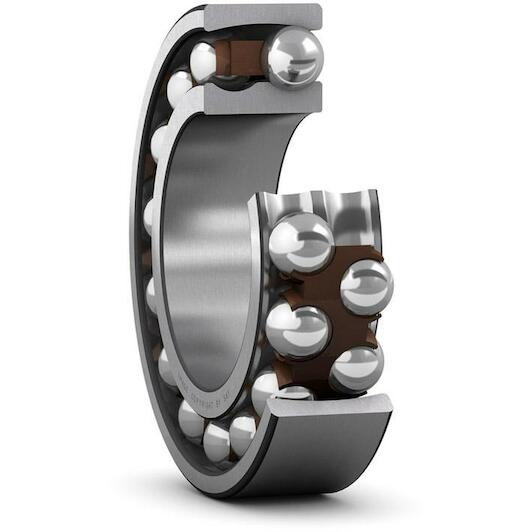

SKF 2216 ETN9 double-row self-aligning ball bearing cylindrical 80x140x33 mm

Supplier number: SKF 2216 ETN9 | EAN 7316576620669

Recommended Retail Price €589.35

291.60 tax incl.

€240.99 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered as of 13/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with the Skf 2216 ETN9

Practical benefits

Automatic misalignment compensation: The self-aligning design compensates for shaft deflections effortlessly, helping you prevent premature component wear.
Enhanced radial load capacity: With its double-row layout, you distribute heavy radial forces evenly to maintain steady machinery operation.
Lightweight polyamide cage: The durable polymer cage minimizes running friction, allowing you to achieve quieter high-speed performance.

In a nutshell

The right choise for

Keep your industrial machinery, conveyor systems, and rotating equipment running smoothly with the Skf 2216 ETN9 double-row self-aligning ball bearing. Featuring an 80 mm cylindrical bore, a 140 mm outer diameter, and a 33 mm width, this open bearing effortlessly accommodates shaft deflections and angular misalignments thanks to its spherical outer raceway. The dual-row ball design distributes heavy radial loads evenly, preventing premature wear and heat build-up. Additionally, the lightweight glass-fibre reinforced polyamide cage (TN9) minimizes friction for quiet, high-speed operation. With standard radial internal clearance (CN), you can mount it directly onto standard cylindrical shafts and apply the ideal lubrication for your application.

Product information FAQ

€291.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 80 mm
Width: 33 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 140 mm

Product description

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 80 mm
Width: 33 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 140 mm
Basic static load rating: 25.5
Tolerance class: Normal
Retaining feature, inner ring: None
Radial internal clearance: CN
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 8500
Lubricant: None
Sealing: Without
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Coating: Without
Limiting speed: 6000
Bore diameter: 80
Basic dynamic load rating: 65
Outer diameter: 140

Brand SKF
01030131
EAN 7316576620669
Supplier number SKF 2216 ETN9

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF bearing?: This ball bearing features an 80 mm bore diameter, a 140 mm outer diameter, and a width of 33 mm.
What does the designation TN9 mean?: The suffix TN9 indicates that the bearing is fitted with a glass-fibre reinforced polyamide PA66 (plastic) cage.
What is the purpose of a self-aligning ball bearing?: It accommodates static and dynamic angular misalignments or shaft deflections thanks to its spherical outer ring raceway.
Is this bearing sealed and pre-lubricated?: No, this is an open bearing without seals or lubricant. You must apply appropriate lubrication during installation.
What bore type and clearance class does this model have?: This model features a cylindrical bore for direct shaft mounting and has standard (CN) radial internal clearance.
