What are the dimensions of this SKF bearing?

This bearing has a 90 mm bore diameter, a 160 mm outer diameter, and a width of 40 mm.

What does the suffix K indicate?

The letter K designates a tapered bore (1:12 taper), designed for mounting with an adapter or withdrawal sleeve.

What is the main benefit of a self-aligning ball bearing?

It accommodates angular misalignments and shaft deflections relative to the housing without increasing friction.

Is this bearing sealed or open?

This is an open bearing without integrated contact seals or shields.

What internal radial clearance does this bearing have?

This bearing features standard normal radial internal clearance (CN).

SKF 2218 K double-row self-aligning ball bearing tapered 90x160x40 mm

Supplier number: SKF 2218 K | EAN 7316577002037

Recommended Retail Price €1,014.25

501.95 tax incl.

€414.83 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Product information FAQ

€501.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 90 mm
Width: 40 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 160 mm

Product description

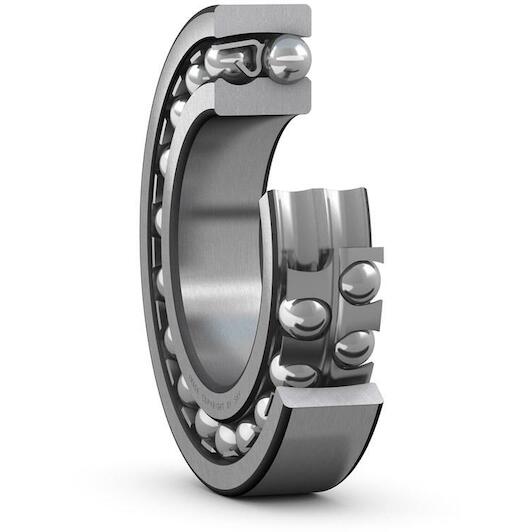

Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.

Ease of mounting via adapter sleeves or withdrawal sleeves
Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 90 mm
Width: 40 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 160 mm
Basic static load rating: 28.5
Tolerance class: Normal
Retaining feature, inner ring: None
Radial internal clearance: CN
Cage: Sheet metal
Relubrication feature: Without
Reference speed: 7500
Lubricant: None
Sealing: Without
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Coating: Without
Limiting speed: 5300
Bore diameter: 90
Basic dynamic load rating: 70.2
Outer diameter: 160

Brand SKF
01030136
EAN 7316577002037
Supplier number SKF 2218 K

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: This bearing has a 90 mm bore diameter, a 160 mm outer diameter, and a width of 40 mm.
What does the suffix K indicate?: The letter K designates a tapered bore (1:12 taper), designed for mounting with an adapter or withdrawal sleeve.
What is the main benefit of a self-aligning ball bearing?: It accommodates angular misalignments and shaft deflections relative to the housing without increasing friction.
Is this bearing sealed or open?: This is an open bearing without integrated contact seals or shields.
What internal radial clearance does this bearing have?: This bearing features standard normal radial internal clearance (CN).
