What are the dimensions of this bearing?

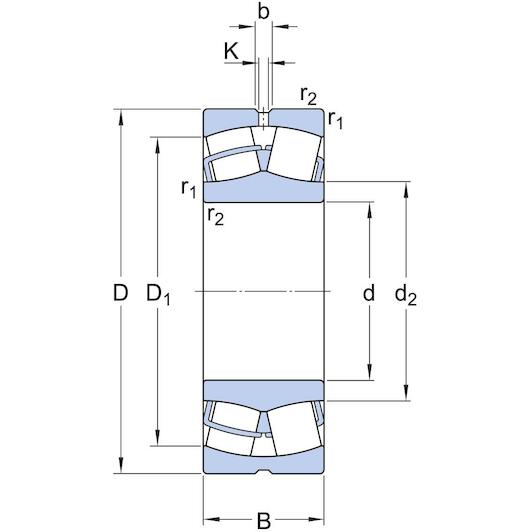

This SKF spherical roller bearing has an inside diameter of 40 mm, an outside diameter of 80 mm, and a width of 23 mm.

What bore type does the SKF 22208 E feature?

It features a cylindrical bore for direct mounting onto a cylindrical shaft.

Can this bearing be relubricated?

Yes, this model includes relubrication features to easily supply lubricant.

Is this SKF bearing sealed?

No, this bearing is an open design without seals.

What is the radial internal clearance of this bearing?

This bearing has standard normal radial internal clearance (CN).

SKF 22208 E double-row cylindrical roller bearing 40 x 80 x 23 mm

Supplier number: SKF 22208 E | EAN 7316576651922

Recommended Retail Price €216.95

107.40 tax incl.

€88.76 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 15/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable heavy-duty support for rotating shafts

Practical benefits

High combined load capacity: With two rows of spherical rollers, you accommodate heavy radial and axial loads in both directions.
Accommodates angular misalignment: The self-aligning design compensates for shaft deflections and misalignment without increasing operating friction or temperature.
Fast and convenient relubrication: Integrated lubrication features let you service this Skf bearing efficiently to maximize operating life.

In a nutshell

The right choise for

With the Skf 22208 e double-row spherical roller bearing, you keep heavy-duty machinery running smoothly under demanding industrial loads. Designed to carry heavy radial and axial forces in both directions, this self-aligning open bearing accommodates shaft deflection and misalignment without increasing operating friction or heat. Featuring a cylindrical bore with dimensions of 40 x 80 x 23 mm and normal cn radial clearance, it mounts directly onto rotating shafts. The integrated relubrication features make routine servicing quick and efficient, helping you maximize operating life and avoid unexpected downtime in gearboxes, conveyors, and processing equipment.

Product information FAQ

€107.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 40 mm
Width: 23 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 80 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 40 mm
Width: 23 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 80 mm
Reference speed: 8000
Basic static load rating: 91.5
Relubrication feature: With
Tolerance class for run-out: P5
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: CN
Basic dynamic load rating: 98.5
Sealing: Without
Limiting speed: 11000
Bore diameter: 40
Outer diameter: 80
Tolerance class for dimensions: Normal

Brand SKF
01090025
EAN 7316576651922
Supplier number SKF 22208 E

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: This SKF spherical roller bearing has an inside diameter of 40 mm, an outside diameter of 80 mm, and a width of 23 mm.
What bore type does the SKF 22208 E feature?: It features a cylindrical bore for direct mounting onto a cylindrical shaft.
Can this bearing be relubricated?: Yes, this model includes relubrication features to easily supply lubricant.
Is this SKF bearing sealed?: No, this bearing is an open design without seals.
What is the radial internal clearance of this bearing?: This bearing has standard normal radial internal clearance (CN).
