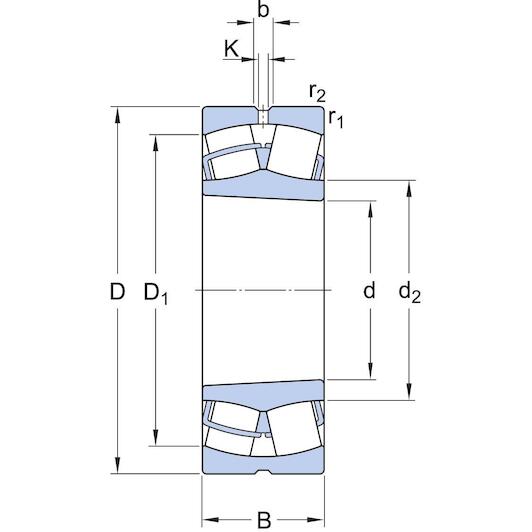

What are the dimensions of this bearing?

The bearing has a 50 mm bore diameter, a 90 mm outside diameter, and a width of 23 mm.

What bore type does the SKF 22210 EK have?

This bearing features a tapered bore with a 1:12 taper ratio.

What internal radial clearance does this bearing have?

This model features normal internal radial clearance (CN).

Is this spherical roller bearing sealed?

No, this bearing is open and does not have integrated seals.

Does this bearing support relubrication?

Yes, it includes relubrication features in the outer ring.

SKF 22210 EK double-row tapered roller bearing 50 x 90 x 23 mm

Supplier number: SKF 22210 EK | EAN 7316571905242

Recommended Retail Price €242.40

119.95 tax incl.

€99.13 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 16/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation under heavy loads

Practical benefits

High load carrying capacity: Two rows of symmetrical rollers allow you to support heavy combined radial and axial forces reliably.
Self-aligning 22210 EK design: You easily compensate for shaft deflections and angular misalignments without increasing internal friction or running temperatures.
Convenient relubrication features: Integrated lubrication holes and grooves let you quickly replenish grease to maintain peak performance during demanding operations.

In a nutshell

The right choise for

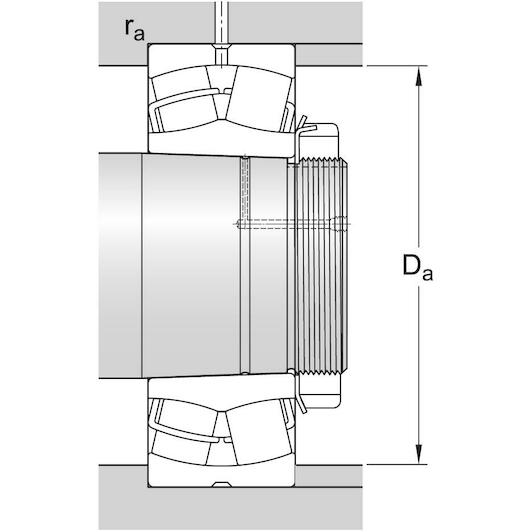

With the Skf 22210 ek double-row spherical roller bearing, you easily manage heavy combined radial and axial loads in demanding equipment such as conveyors and industrial gearboxes. Its self-aligning design automatically compensates for shaft deflections and angular misalignments without causing extra friction or temperature buildup. The tapered bore with a 1:12 ratio enables secure mounting directly onto a tapered journal or via an adapter sleeve onto a cylindrical shaft. Featuring integrated lubrication grooves and holes in the outer ring, this open bearing allows for straightforward relubrication during routine maintenance to keep your heavy machinery running smoothly and reliably.

Product information FAQ

€119.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 50 mm
Width: 23 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 90 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 23 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 90 mm
Reference speed: 7000
Basic static load rating: 108
Relubrication feature: With
Tolerance class for run-out: P5
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: CN
Basic dynamic load rating: 107
Sealing: Without
Limiting speed: 9500
Bore diameter: 50
Outer diameter: 90
Tolerance class for dimensions: Normal

Brand SKF
01090030
EAN 7316571905242
Supplier number SKF 22210 EK

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has a 50 mm bore diameter, a 90 mm outside diameter, and a width of 23 mm.
What bore type does the SKF 22210 EK have?: This bearing features a tapered bore with a 1:12 taper ratio.
What internal radial clearance does this bearing have?: This model features normal internal radial clearance (CN).
Is this spherical roller bearing sealed?: No, this bearing is open and does not have integrated seals.
Does this bearing support relubrication?: Yes, it includes relubrication features in the outer ring.
