SKF 22211 EK spherical roller bearing tapered roller 55 x 100 x 25 mm

Supplier number: SKF 22211 EK | EAN 7316576652165

Recommended Retail Price €266.77

131.95 tax incl.

€109.05 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 29/09/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Heavy load management by Skf

Practical benefits

High dual directional capacity: You accommodate heavy radial and axial loads in both directions thanks to the double row spherical roller design.
Smooth self-aligning capability: You prevent mechanical stress by compensating for shaft deflections and misalignments without increasing internal friction or running temperatures.
Quick and easy relubrication: Built-in lubrication features allow you to reapply grease efficiently, keeping your rotating equipment running with minimal maintenance downtime.

In a nutshell

The right choise for

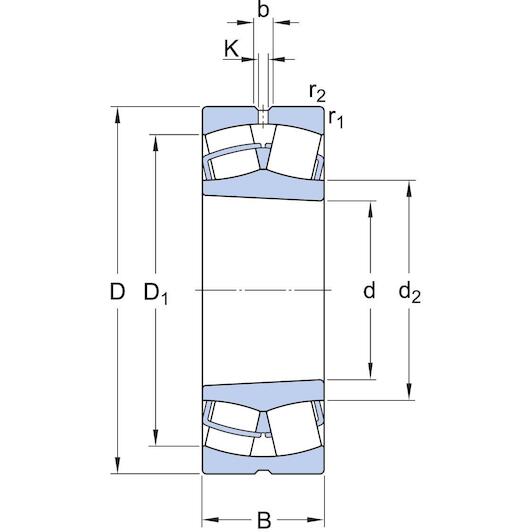

With the Skf 22211 ek double row spherical roller bearing, you keep heavy industrial machinery running smoothly under demanding conditions. Its two rows of barrel-shaped rollers reliably accommodate heavy radial and axial loads in both directions. The self-aligning design easily compensates for shaft deflections and angular misalignment without increasing friction or operating temperature. Featuring a 55 mm tapered bore, a 100 mm outer diameter, and a width of 25 mm, it mounts securely on tapered shafts or using adapter sleeves. Thanks to the integrated relubrication features, you can quickly apply grease during routine maintenance, minimizing downtime and extending service life.

Product information FAQ

€131.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 55 mm
Width: 25 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 100 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 55 mm
Width: 25 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 100 mm
Reference speed: 6300
Basic static load rating: 127
Relubrication feature: With
Tolerance class for run-out: P5
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: CN
Basic dynamic load rating: 129
Sealing: Without
Limiting speed: 8500
Bore diameter: 55
Outside diameter: 100
Tolerance class for dimensions: Normal

Brand SKF
01090032
EAN 7316576652165
Supplier number SKF 22211 EK

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF bearing?: This bearing has a 55 mm bore diameter, a 100 mm outer diameter, and a width of 25 mm.

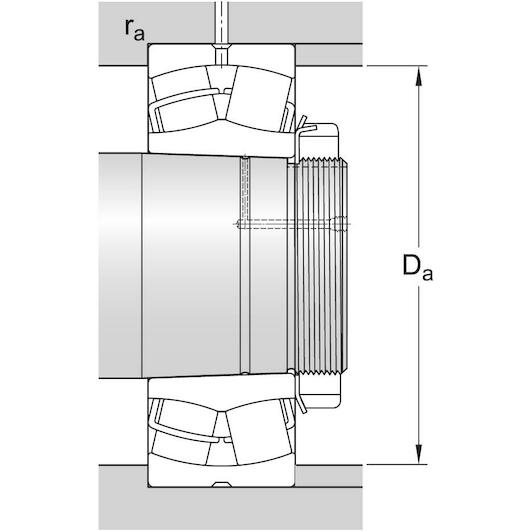

What does the tapered bore mean on the SKF 22211 EK?: The tapered bore (1:12 taper) allows mounting directly on tapered shafts or using adapter and withdrawal sleeves.
Can this bearing accommodate misalignment and heavy loads?: Yes, this double-row spherical roller bearing is self-aligning and accommodates heavy radial and axial loads.
Does this SKF bearing include relubrication features?: Yes, it is designed with features that facilitate easy relubrication during operation.
Does this bearing come with integrated seals?: No, this is an open bearing without seals and requires external protection against dirt and moisture.
