SKF 22213 EK double-row tapered roller bearing 65 x 120 x 31 mm

Supplier number: SKF 22213 EK | EAN 7316571560922

Recommended Retail Price €354.80

175.60 tax incl.

€145.12 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 29/09/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

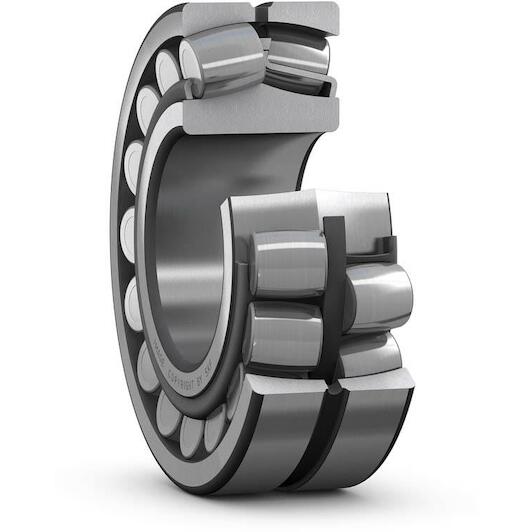

High load capacity for demanding industrial machinery

Practical benefits

Heavy combined load support: You handle heavy radial and axial loads in both directions easily with the two-row spherical roller design.
Self-aligning under deflection: The spherical raceway automatically accommodates shaft misalignment and deflection without increasing friction or operating temperatures.

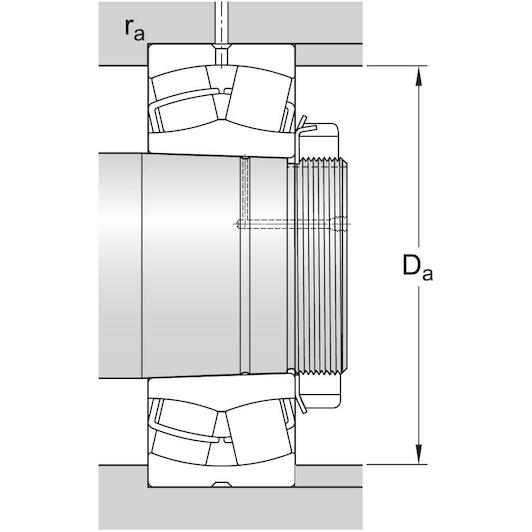

Easy relubrication by Skf: You simplify mounting on adapter sleeves and ensure straightforward maintenance using the tapered bore and lubrication features.

In a nutshell

The right choise for

Keep your heavy industrial machinery running smoothly with the Skf 22213 ek double-row spherical roller bearing. Designed to carry heavy radial and axial loads simultaneously in both directions, this self-aligning bearing easily accommodates shaft deflections and angular misalignments in gearboxes, conveyor systems, and vibrating screens. By compensating for alignment issues, it keeps friction and operating temperatures low. The 65 mm tapered bore allows straightforward mounting onto shafts using an adapter sleeve. In addition, integrated lubrication grooves and holes in the outer ring make routine relubrication simple and efficient, helping you minimize downtime and maintain long-term operational reliability.

Product information FAQ

€175.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Width: 31 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 120 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Width: 31 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 120 mm
Reference speed: 5000
Basic static load rating: 216
Relubrication feature: With
Tolerance class for run-out: P5
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: CN
Basic dynamic load rating: 198
Sealing: Without
Limiting speed: 7000
Bore diameter: 65
Outside diameter: 120
Tolerance class for dimensions: Normal

Brand SKF
01090036
EAN 7316571560922
Supplier number SKF 22213 EK

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF spherical roller bearing?: The bearing has a bore diameter of 65 mm, an outside diameter of 120 mm, and a width of 31 mm.
What does the K designation in the model code mean?: The letter K indicates a tapered bore (1:12 taper), suitable for mounting with an adapter sleeve or directly on a tapered seat.
Does this bearing accommodate shaft misalignment?: Yes, this double-row spherical roller bearing is self-aligning and accommodates shaft deflections and angular misalignments.
Is this bearing sealed?: No, this is an open bearing without integrated seals.
Can this bearing be relubricated?: Yes, it is equipped with relubrication features, including an annular groove and lubrication holes in the outer ring.
