SKF

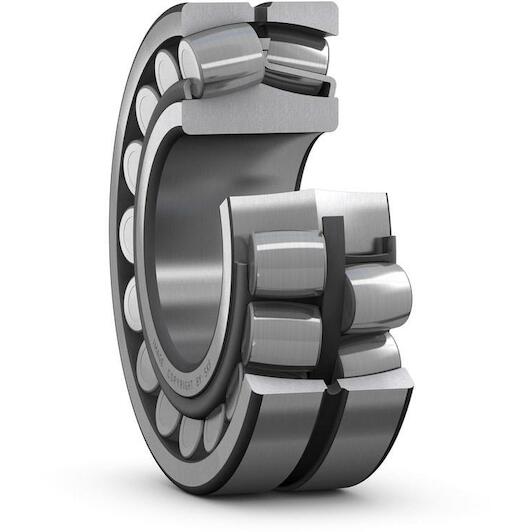

SKF 22217 E/C2 spherical roller bearing cylindrical 85 x 150 x 36 mm

This article is not available

Product description:

  • Spherical roller bearings, also called pendulum roller bearings, have two rows of rollers with a common spherical raceway in the outer ring
  • The two raceways of the inner ring are at an angle to the centre line of the shaft
  • The bearings can adjust and are therefore insensitive to shaft misalignment relative to the housing and to shaft deflection
  • Spherical roller bearings can support not only high radial loads but also axial loads in both directions
Key features according to our expert
  • Inner diameter: 85 mm
  • Width: 36 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C2
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 150 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571734460
  • Supplier number: SKF 22217 E/C2
Inner diameter
85 mm
Width
36 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C2
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
150 mm
Basic static load rating
325 kN
Locating feature, bearing outer ring
Without
Tolerance class
Normal
Radial internal clearance
C2
Lubricant
None
Relubrication feature
With
Reference speed
4,000 r/min
Skf performance class
SKF Explorer
Tolerance class for dimensions
Normal
Cage
Sheet metal
Sealing
Without
Basic dynamic load rating
291 kN
Limiting speed
5,600 r/min
Tolerance class for run-out
P5
Bore diameter
85 mm
Outside diameter
150 mm
