skf_22230cckc4w33

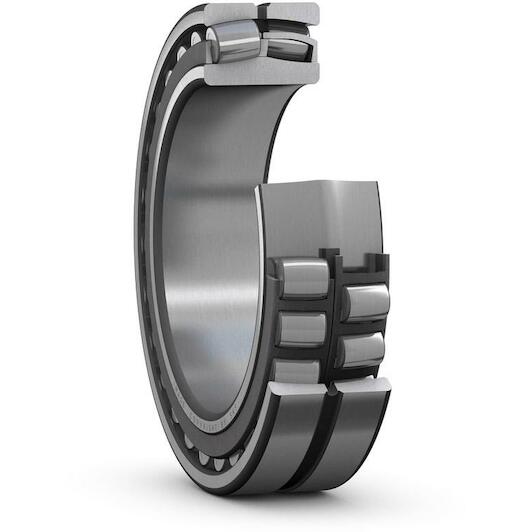

SKF 22230 CCK/C4W33 double-row tapered roller bearing 150 x 270 x 73 mm

Supplier number: SKF 22230 CCK/C4W33 | EAN 7316576600722
Recommended Retail Price €3,128.56
1,548.80 tax incl.
€1,280.00 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/11/2026

  • Ordered before 20:00 - delivered as of 26/11/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium


€1,548.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 150 mm
  • Width: 73 mm
  • Number of rows: 2
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Radial clearance: C4
  • Material (cage): Brass (sheet)
  • Bore type: Tapered
  • Outer diameter: 270 mm

Product description

  • Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts. Also available on request with special sized bore and/or outside diameters, suitable for reworked shafts and housings.

Avantages

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Documents

All Features

Inner diameter
150 mm
Width
73 mm
Number of rows
2
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Radial clearance
C4
Material (cage)
Brass (sheet)
Bore type
Tapered
Outer diameter
270 mm
Skf performance class
SKF Explorer
Basic static load rating
1080 kN
Relubrication feature
With
Reference speed
2200 r/min
Candidate for remanufacturing
Yes
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
C4
Basic dynamic load rating
898 kN
Sealing
Without
Limiting speed
3000 r/min
Bore diameter
150 mm
Outside diameter
270 mm
Tolerance class for dimensions
Normal
  • Brand SKF
  • EAN 7316576600722
  • Supplier number SKF 22230 CCK/C4W33
