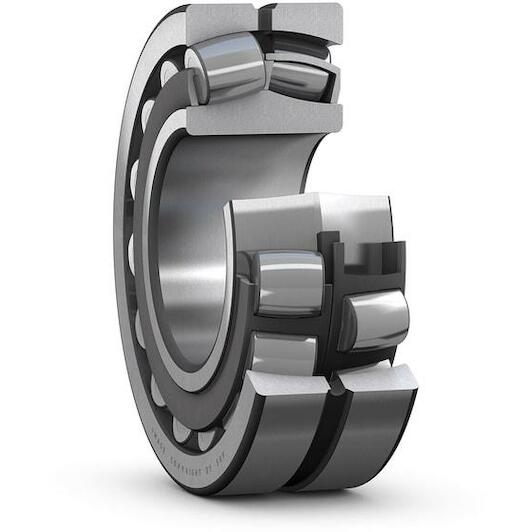

Product description Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts. Avantages Accommodate misalignment High load carrying capacity Relubrication features Low friction and long service life Increased wear resistance
Key features according to our expert
Inner diameter: 260 mm
Width: 130 mm
Number of rows: 2
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Radial clearance: C3
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 480 mm
Specifications / All features
Brand:
SKF
08106378
EAN:
7316571787244
Supplier number:
SKF 22252 CC/C3W33
Inner diameter
260 mm
Width
130 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
480 mm
Relubrication feature
With
Tolerance class
Normal
Radial internal clearance
C3
Basic static load rating
3,550 kN
Candidate for remanufacturing
Yes
Reference speed
1,200 r/min
Skf performance class
SKF Explorer
Lubricant
None
Sealing
Without
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for dimensions
Normal
Limiting speed
1,600 r/min
Tolerance class for run-out
P5
Bore diameter
260 mm
Basic dynamic load rating
2,722 kN
Outside diameter
480 mm
