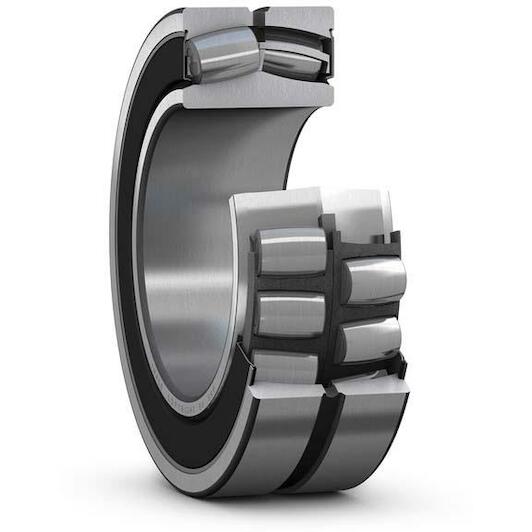

SKF 22330-2CS5/VT143 spherical roller bearing with sealing on both sides and relubrication 150 mm

Supplier number: SKF 22330-2CS5/VT143 | EAN 7316574278138
Recommended Retail Price €8,512.13
4,214.20 tax incl.
€3,482.81 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/10/2026

  • Ordered before 20:00 - delivered as of 23/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium


€4,214.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 150 mm
  • Width: 108 mm
  • Number of rows: 2
  • Sealing (bearing): Sealed on both sides
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 320 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.

  • Accommodate misalignment
  • High load carrying capacity
  • Sealed for increased reliability, with relubrication features
  • Low friction and long service life
  • Increased wear resistance

All Features

Inner diameter
150 mm
Width
108 mm
Number of rows
2
Sealing (bearing)
Sealed on both sides
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
320 mm
Lubricant
Grease
Basic static load rating
1760
Relubrication feature
With
Skf performance class
SKF Explorer
Candidate for remanufacturing
Yes
Sealing type
Contact
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
CN
Sealing
Seal on both sides
Limiting speed
520
Bore diameter
150
Basic dynamic load rating
1541
Outer diameter
320
Tolerance class for dimensions
Normal
  • Brand SKF
  • EAN 7316574278138
  • Supplier number SKF 22330-2CS5/VT143
