SKF 22448 radial shaft seal with double metal housing, Wave lip and additional non-slip lip, for oil or grease

Recommended Retail Price €31.58

15.80 tax incl.

€13.06 excl. VAT (incl. all environmental contributions)

SKF 22448 radial shaft seal with double metal housing, Wave lip and additional non-slip lip, for oil or grease

€15.80 Recommended Retail Price €31.58

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

Product information

Product description

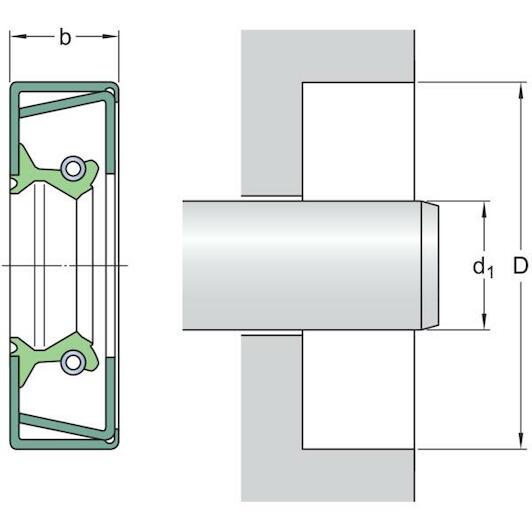

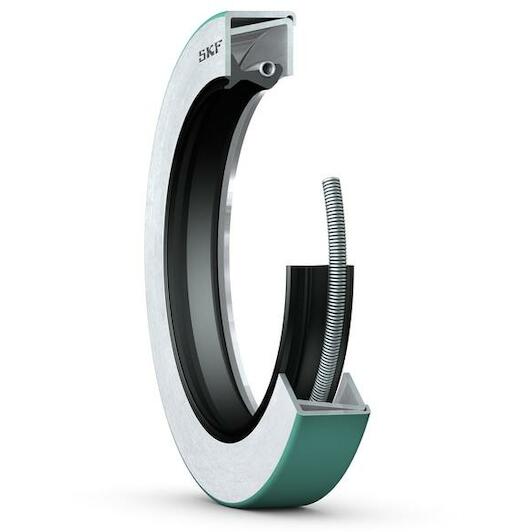

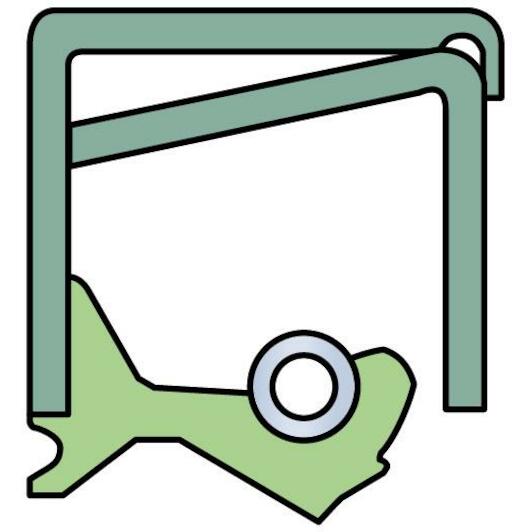

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRWHA1 seals are designed with a double metal case, an SKF WAVE lip made of elastomer with a higher pumping rate to reduce heat generation, a garter spring to optimize sealing against the shaft, and a dust lip to improve contamination exclusion. Most of the seals feature the SKF Bore Tite coating on the outside diameter that helps fill small imperfections in the housing bore.

For oil or grease
With garter spring
WAVE lip creates higher pumping rate
WAVE lip has less friction between shaft and lip
WAVE lip has a lower temperature at the contact point

Key features according to our expert

Inner diameter: 57,15 mm
Width: 11,13 mm
Material: NBR - Nitrile-Butadiene Rubber - Nitrile
With dust lip: Yes
Version (radial oil seal according to DIN 3760): CS
Outer diameter: 82,57 mm

Specifications / All features

Brand: SKF
08125149
EAN: 00085311025027
Supplier number: SKF 22448

Inner diameter: 57,15 mm
Width: 11,13 mm
Material: NBR - Nitrile-Butadiene Rubber - Nitrile
With dust lip: Yes
Version (radial oil seal according to din 3760): CS
Outer diameter: 82,57 mm
Auxiliary lip: Yes
Minimum operating temperature: -40
Rotational speed: 2820
Type of outside diameter: Metal-cased with sealant coating on the outside diameter
Unit system: Inch
Seal width: 11.13
Maximum operating temperature: 100
Housing bore diameter: 82.5754
Limiting speed: 2820
Design: CRWHA1
Sealing lip material: Nitrile rubber (NBR)
Shaft diameter: 57.15
Permissible circumferential speed: 8.38
