What are the dimensions of this SKF ball bearing?

This bearing has a bore diameter of 30 mm, an outside diameter of 72 mm, and a width of 27 mm.

How do you mount a bearing with a tapered bore?

A tapered bore bearing is easily mounted onto a shaft using an adapter sleeve or withdrawal sleeve.

What radial internal clearance does the SKF 2306 K have?

This model features a standard normal radial internal clearance (CN).

Is this self-aligning ball bearing sealed?

No, this open bearing comes without seals and requires external lubrication.

What is the main benefit of a self-aligning ball bearing?

It accommodates angular misalignments and shaft deflections without increasing friction or wear.

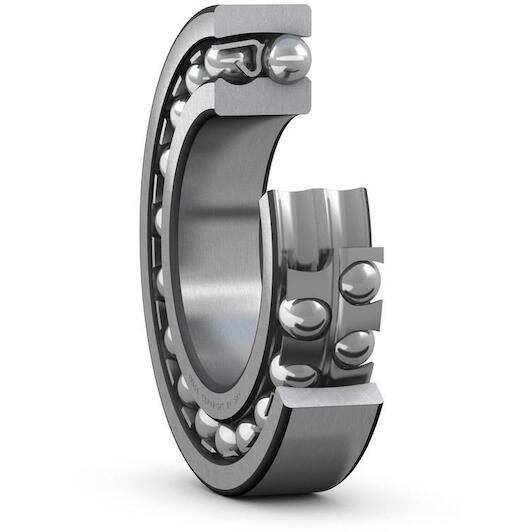

SKF 2306 K double-row self-aligning ball bearing tapered 30x72x27 mm

Recommended Retail Price €193.55

95.80 tax incl.

€79.17 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth operation through shaft deflections

Practical benefits

Skf 2306 K self-aligning design: You accommodate angular shaft misalignment and deflections without causing binding or premature component wear.
Simple tapered bore mounting: Thanks to the tapered bore, you mount the bearing quickly and securely using an adapter sleeve.
Low-friction high-speed performance: The double-row ball layout generates minimal heat, ensuring you maintain reliable and efficient rotation under continuous use.

In a nutshell

The right choise for

With the Skf 2306 k double-row self-aligning ball bearing, you keep your machinery running smoothly, even when facing shaft deflections or alignment errors. Its self-aligning design effortlessly accommodates static and dynamic angular misalignment, preventing unnecessary friction and premature wear. The tapered bore allows for fast, secure mounting on shafts using an adapter sleeve, making it ideal for conveyor systems, industrial fans, and pumps. Featuring a double-row ball layout, it generates minimal heat at medium to high speeds, ensuring dependable, long-lasting performance in demanding industrial drives and mechanical equipment.

Product information FAQ

€95.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 27 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 72 mm

Product description

Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.

Ease of mounting via adapter sleeves or withdrawal sleeves
Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 27 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 72 mm
Basic static load rating: 8.8
Tolerance class: Normal
Retaining feature, inner ring: None
Radial internal clearance: CN
Cage: Sheet metal
Relubrication feature: Without
Reference speed: 18000
Lubricant: None
Sealing: Without
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Coating: Without
Limiting speed: 13000
Bore diameter: 30
Basic dynamic load rating: 31.2
Outer diameter: 72

Brand SKF
01030149
EAN 7316570286748
Supplier number SKF 2306 K

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: This bearing has a bore diameter of 30 mm, an outside diameter of 72 mm, and a width of 27 mm.
How do you mount a bearing with a tapered bore?: A tapered bore bearing is easily mounted onto a shaft using an adapter sleeve or withdrawal sleeve.
What radial internal clearance does the SKF 2306 K have?: This model features a standard normal radial internal clearance (CN).
Is this self-aligning ball bearing sealed?: No, this open bearing comes without seals and requires external lubrication.
What is the main benefit of a self-aligning ball bearing?: It accommodates angular misalignments and shaft deflections without increasing friction or wear.
