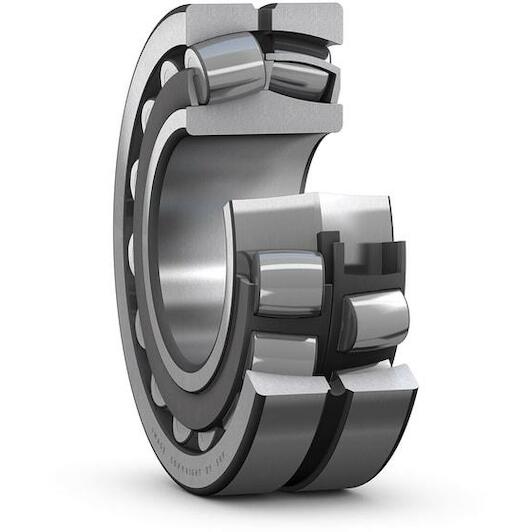

SKF 23068 CC/C3W33 spherical roller bearing with relubrication 340 mm

Recommended Retail Price €13,272.33
6,570.95 tax incl.
€5,430.54 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 340 mm
  • Width: 133 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 520 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570968286
  • Supplier number: SKF 23068 CC/C3W33
Inner diameter
340 mm
Width
133 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
520 mm
Skf performance class
SKF Explorer
Basic static load rating
4550
Relubrication feature
With
Reference speed
1000
Candidate for remanufacturing
Yes
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
Normal
Radial internal clearance
C3
Basic dynamic load rating
2812
Sealing
Without
Limiting speed
1300
Bore diameter
340
Outside diameter
520
Tolerance class for dimensions
Normal
