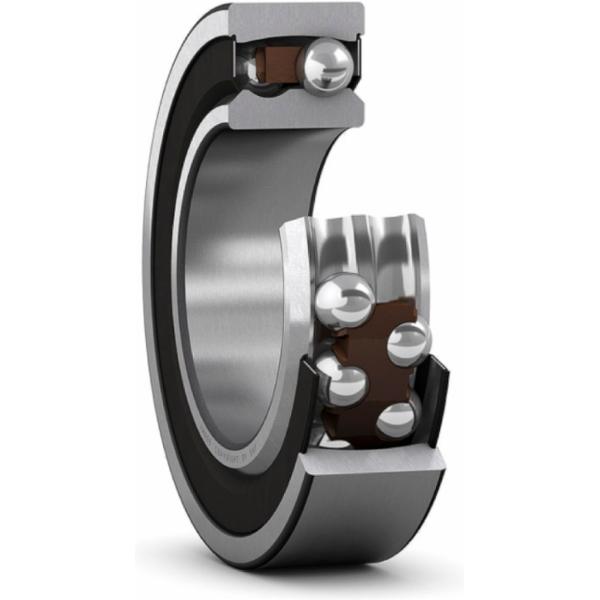

SKF 2307 E-RS1TN9/C3 double-row self-aligning ball bearing cylindrical 35x80x31 mm

SKF
Supplier number: SKF 2307 E-RS1TN9/C3 | EAN 7316577061386
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Inner diameter: 35 mm
  • Width: 31 mm
  • Number of rows: 2
  • Sealing (bearing): Sealed on one side
  • Material (bearing seal): Rubber
  • Radial clearance: C3
  • Material (cage): Plastic
  • Bore type: Cylindrical
  • Outer diameter: 80 mm

Product description:

  • The double-row self-adjusting ball bearing has two rows of balls and a common spherical raceway in the outer ring
  • This allows the bearing to set itself and is insensitive to misalignment with respect to the bearing housing
  • This bearing is particularly suitable for bearing constructions where significant shaft deflections or misalignments must be taken into account
  • Another advantage of self-aligning ball bearings is that they have the lowest friction of all rolling bearings, so this bearing generates less frictional heat even at higher speeds

All Features

Inner diameter
35 mm
Width
31 mm
Number of rows
2
Sealing (bearing)
Sealed on one side
Material (bearing seal)
Rubber
Radial clearance
C3
Material (cage)
Plastic
Bore type
Cylindrical
Outer diameter
80 mm
Relubrication feature
Without
Retaining feature, inner ring
None
Radial internal clearance
C3
Basic static load rating
8.5 kN
Cage
Non-metallic
Reference speed
15,000 r/min
Lubricant
Grease
Sealing type
Contact
Locating feature, bearing outer ring
None
Material, bearing
Bearing steel
Tolerance class
Normal
Basic dynamic load rating
26.5 kN
Sealing
Seal on one side
Limiting speed
11,000 r/min
Bore diameter
35 mm
Coating
Without
Outer diameter
80 mm
  • Brand SKF
  • EAN 7316577061386
  • Supplier number SKF 2307 E-RS1TN9/C3
