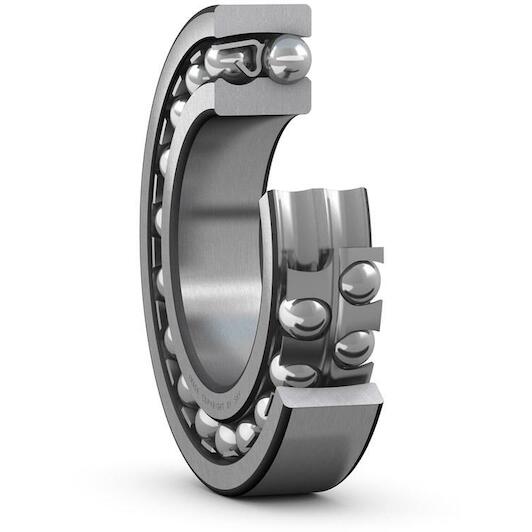

SKF 2313 double-row self-aligning ball bearing cylindrical 65x140x48 mm

SKF
Supplier number: SKF 2313 | EAN 7316576605284
Recommended Retail Price €724.91
358.80 tax incl.
€296.53 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Ordered before 20:00 - delivered as of 22/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€358.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 65 mm
  • Width: 48 mm
  • Number of rows: 2
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 140 mm

Product description

  • Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Avantages

  • Accommodate static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light load performance
  • Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
65 mm
Width
48 mm
Number of rows
2
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
140 mm
Basic static load rating
32.5
Tolerance class
Normal
Retaining feature, inner ring
None
Radial internal clearance
CN
Cage
Sheet metal
Relubrication feature
Without
Reference speed
9000
Lubricant
None
Sealing
Without
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Coating
Without
Limiting speed
6300
Bore diameter
65
Basic dynamic load rating
95.6
Outer diameter
140
  • Brand SKF
  • EAN 7316576605284
  • Supplier number SKF 2313
