SKF

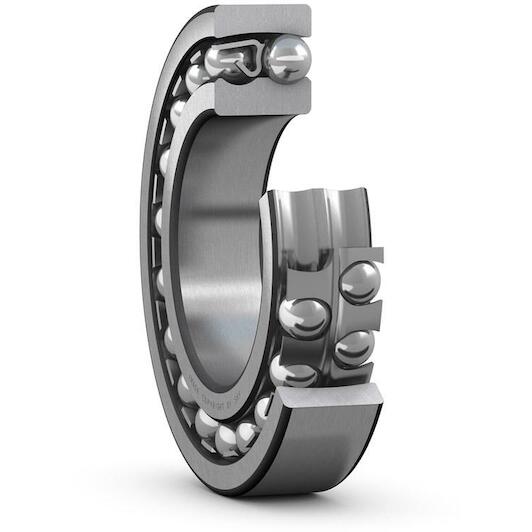

SKF 2316 double-row self-aligning ball bearing cylindrical 80x170x58 mm

Recommended Retail Price €1,362.34
674.40 tax incl.
€557.36 excl. VAT (incl. all environmental contributions)
On order: delivered from 18/06/2026
each

  • Ordered before 20:00 - delivered as of 18/06/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

  • Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Avantages

  • Accommodate static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light load performance
  • Low friction
Key features according to our expert
  • Inner diameter: 80 mm
  • Width: 58 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 170 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570895803
  • Supplier number: SKF 2316
Inner diameter
80 mm
Width
58 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
170 mm
Basic static load rating
49 kN
Tolerance class
Normal
Retaining feature, inner ring
None
Radial internal clearance
CN
Cage
Sheet metal
Relubrication feature
Without
Reference speed
7,000 r/min
Lubricant
None
Sealing
Without
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Coating
Without
Limiting speed
5,300 r/min
Bore diameter
80 mm
Basic dynamic load rating
135 kN
Outside diameter
170 mm
