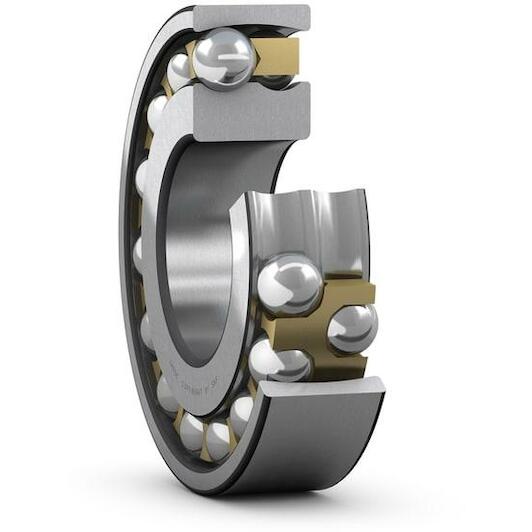

Product description Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. Avantages Accommodate static and dynamic misalignment Excellent high-speed performance Excellent light load performance Low friction
Key features according to our expert
Inner diameter: 100 mm
Width: 73 mm
Number of rows: 2
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Radial clearance: C3
Material (cage): Brass (solid)
Bore type: Cylindrical
Outer diameter: 215 mm
Specifications / All features
Brand:
SKF
01973952
EAN:
7316571516974
Supplier number:
SKF 2320 M/C3
Inner diameter
100 mm
Width
73 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (cage)
Brass (solid)
Bore type
Cylindrical
Outer diameter
215 mm
Basic static load rating
80 kN
Tolerance class
Normal
Retaining feature, inner ring
None
Radial internal clearance
C3
Cage
Machined metal
Relubrication feature
Without
Reference speed
5,600 r/min
Lubricant
None
Sealing
Without
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Coating
Without
Limiting speed
4,000 r/min
Bore diameter
100 mm
Basic dynamic load rating
190 kN
Outside diameter
215 mm
