SKF

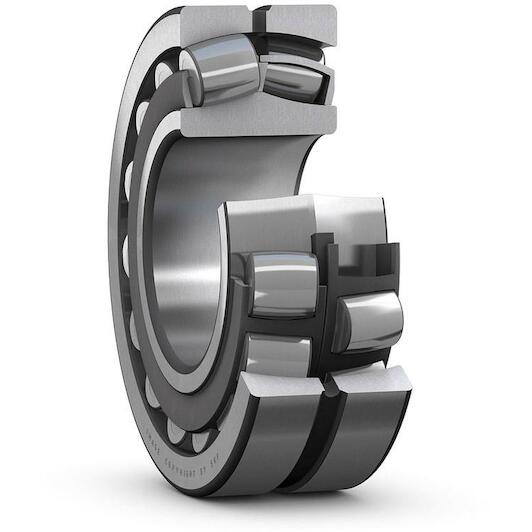

SKF 24036 CC/C4W33 double-row cylindrical roller bearing 180 x 280 x 100 mm

This article is not available

Product description:

  • Spherical roller bearings, also called pendulum roller bearings, have two rows of rollers with a common spherical raceway in the outer ring
  • The two raceways of the inner ring are at an angle to the centre line of the shaft
  • The bearings can adjust and are therefore insensitive to shaft misalignment relative to the housing and to shaft deflection
  • Spherical roller bearings can support not only high radial loads but also axial loads in both directions
Key features according to our expert
  • Inner diameter: 180 mm
  • Width: 100 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C4
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 280 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577651112
  • Supplier number: SKF 24036 CC/C4W33
Inner diameter
180 mm
Width
100 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C4
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
280 mm
Relubrication feature
With
Tolerance class
Normal
Radial internal clearance
C4
Basic static load rating
1,730 kN
Candidate for remanufacturing
Yes
Reference speed
1,500 r/min
Skf performance class
SKF Explorer
Lubricant
None
Sealing
Without
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for dimensions
Normal
Limiting speed
2,200 r/min
Tolerance class for run-out
P5
Bore diameter
180 mm
Basic dynamic load rating
1,134 kN
Outside diameter
280 mm
