SKF 29413 E spherical roller bearing cylindrical 65 x 140 x 45 mm

Supplier number: SKF 29413 E | EAN 7316576609022

Recommended Retail Price €1,880.91

931.20 tax incl.

€769.59 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 30/09/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable capacity for severe axial loads

Practical benefits

High axial capacity: With the Skf 29413 E, you easily accommodate heavy axial loads along with simultaneous radial forces.
Accommodates shaft misalignment: The spherical roller design automatically compensates for shaft deflections to maintain smooth and efficient operation.
Pressed steel cage: The robust stamped steel cage ensures precise roller guidance and extended service life in demanding machinery.

In a nutshell

The right choise for

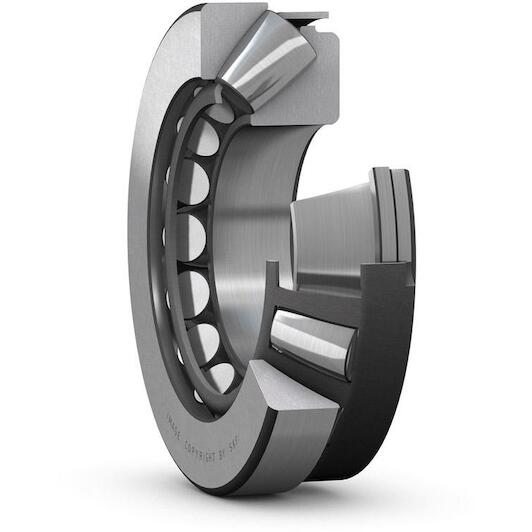

With the Skf 29413 e spherical roller thrust bearing, you keep heavy machinery operating reliably under extreme loads. Engineered to accommodate very heavy unidirectional axial loads alongside simultaneous radial forces, this bearing ensures dependable performance in demanding drives and industrial gearboxes. The spherical roller design makes the bearing self-aligning, effortlessly compensating for shaft deflections and mounting misalignments to reduce internal friction and edge stresses. The pressed steel cage provides precise roller guidance for a long service life in heavy-duty applications. Featuring a 65 mm bore, 140 mm outside diameter, and 45 mm width, it delivers the high load-carrying capacity your equipment requires.

Product information FAQ

€931.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Outer diameter: 140 mm
Width: 45 mm

Product description

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.

High load carrying capacity
Can accommodate combined loads
Allow misalignment or create very stiff bearing arrangements
Long service life and low friction
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Outer diameter: 140 mm
Width: 45 mm
Cage: Sheet metal
Skf performance class: SKF Explorer
Reference speed: 2600
Basic static load rating: 1080
Tolerance class: Normal
Locating feature, housing washer: None
Limiting speed: 4800
Basic dynamic load rating: 455
Bore diameter: 65
Height: 45
Outside diameter: 140
Bore type: Cylindrical

Brand SKF
01170003
EAN 7316576609022
Supplier number SKF 29413 E

Frequently asked questions about this product

Answered by specialists

What are the dimensions of the SKF 29413 E bearing?: The bearing has a 65 mm bore diameter, a 140 mm outside diameter, and a height of 45 mm.
What types of loads can this spherical roller thrust bearing accommodate?: It is designed to accommodate very heavy axial loads alongside significant radial loads.
What material is the cage made from?: This model features a robust stamped sheet steel cage.
Can this bearing accommodate shaft misalignment?: Yes, its spherical design makes it self-aligning, accommodating shaft deflections and angular misalignments.
What does the E designation in the part number indicate?: The E suffix signifies an optimized internal design providing higher load ratings.
