What are the dimensions of this SKF tapered roller bearing?

The bearing has a 25 mm inside diameter, a 52 mm outside diameter, and an overall width of 16.25 mm.

What loads can this single row tapered roller bearing handle?

It is designed to accommodate combined radial and axial loads acting in one direction.

Can the inner and outer rings be mounted separately?

Yes, the inner ring with the roller and cage assembly is separable from the outer ring for easier mounting.

What does the J2/Q designation mean for SKF bearings?

It designates a pressed sheet steel cage and optimized internal geometry and surface finish.

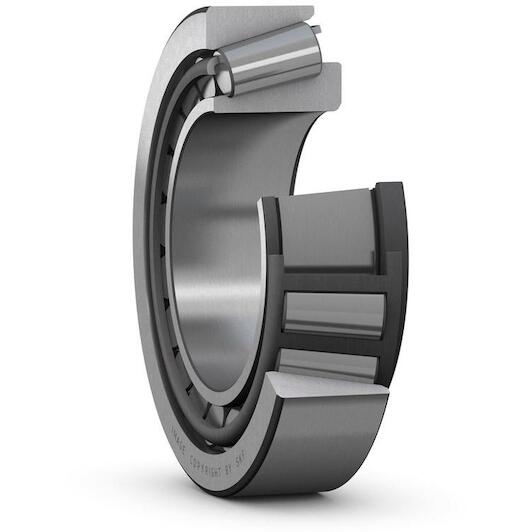

SKF 30205 J2/Q single-row tapered roller bearing 25 x 52 x 16.25 mm with contact angle 14°

Supplier number: SKF 30205 J2/Q | EAN 7316577744807

Recommended Retail Price €38.48

18.95 tax incl.

€15.66 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable load handling with Skf

Practical benefits

High combined load capacity: You accommodate both radial and axial forces simultaneously thanks to the tapered raceway design.
Low friction in operation: The precision roller guidance ensures your machinery runs smoothly with reduced operating temperature.
Quick assembly and maintenance: Because the inner and outer rings are separable, you complete installation and servicing easily.

In a nutshell

The right choise for

With the Skf 30205 J2/Q single row tapered roller bearing, you keep heavy-duty machinery running smoothly and reliably. Sized at 25 x 52 x 16.25 mm with a 14° contact angle, it accommodates simultaneous high radial loads and single-direction axial thrust forces with ease. The optimized internal geometry and pressed steel cage reduce rotational friction and heat build-up in gearboxes, wheel hubs, pumps, and conveyors. Because the inner and outer rings are separable, you complete installation and maintenance work quickly and accurately.

Product information FAQ

€18.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 16,25 mm
Number of rows: 1
Outer diameter: 52 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 16,25 mm
Number of rows: 1
Outer diameter: 52 mm
Arrangement of contact angle (double-row bearing): Not applicable
Bore type: Cylindrical
Cage: Sheet metal
Width, outer ring: 13
Lubricant: None
Reference speed: 10000
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 33.5
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Contact angle: 14.036111111146
Width, total: 16.25
Width, inner ring: 15
Limiting speed: 13000
Bore diameter: 25
Basic dynamic load rating: 33.1
Coating: Without
Outer diameter: 52
Unit system: Metric

Brand SKF
01110003
EAN 7316577744807
Supplier number SKF 30205 J2/Q

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF tapered roller bearing?: The bearing has a 25 mm inside diameter, a 52 mm outside diameter, and an overall width of 16.25 mm.
What loads can this single row tapered roller bearing handle?: It is designed to accommodate combined radial and axial loads acting in one direction.
Can the inner and outer rings be mounted separately?: Yes, the inner ring with the roller and cage assembly is separable from the outer ring for easier mounting.
What does the J2/Q designation mean for SKF bearings?: It designates a pressed sheet steel cage and optimized internal geometry and surface finish.
