SKF

SKF 305264 D double-row angular contact ball bearing 230 x 329.5 x 80 mm with contact angle 32°

Recommended Retail Price €8,040.49
3,980.80 tax incl.
€3,289.92 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

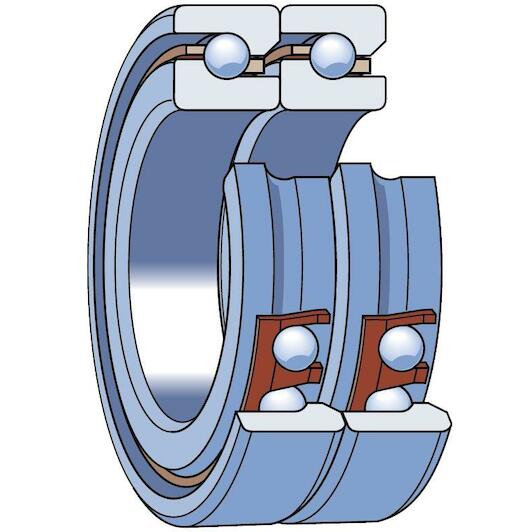

Double row angular contact ball bearing, with two-piece inner ring and relubrication feature, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement. The two-piece inner ring enables incorporation of more balls, resulting in higher load carrying capacity. The annular lubrication groove and holes in the outer ring facilitates relubrication.

  • Accommodate very high axial loads in both directions, radial loads, and tilting moments
  • Relubrication feature
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
Key features according to our expert
  • Inner diameter: 230 mm
  • Width: 80 mm
  • Number of rows: 2
  • Axial clearance: NSTD
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (solid)
  • Outer diameter: 329,5 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577008015
  • Supplier number: SKF 305264 D
Inner diameter
230 mm
Width
80 mm
Number of rows
2
Axial clearance
NSTD
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (solid)
Outer diameter
329,5 mm
Basic static load rating
600
Locating feature, bearing outer ring
None
Ring type
Two-piece inner ring and one-piece outer ring
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
With
Reference speed
1900
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Machined metal
Material, bearing
Bearing steel
Sealing
Without
Axial internal clearance
NSTD
Contact angle
32
Limiting speed
2000
Bore diameter
230
Basic dynamic load rating
351
Coating
Without
Outside diameter
329.5
Universal matching bearing
No
