What are the dimensions of this SKF track roller?

This track roller has a 35 mm bore diameter, an 80 mm outside diameter, and a 27 mm width.

What outer ring profile does this roller have?

The outer ring has a cylindrical (flat) outer surface suitable for flat counter tracks.

What type of sealing is integrated into the bearing?

The roller is fitted on both sides with metal shields (indicated by the 2Z suffix).

Can this cam roller be relubricated?

Yes, a lubrication hole in the inner ring allows for easy relubrication.

What applications is the SKF 305707 C-2Z designed for?

It is designed for use in conveyor systems, cam mechanisms, and linear guidance tracks.

SKF 305707 C-2Z two-row cam roller (Yoke-type idler) 35 x 80 x 27 mm

Supplier number: SKF 305707 C-2Z | EAN 7316577742674

Recommended Retail Price €259.47

128.40 tax incl.

€106.12 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth tracking with Skf 305707 C-2Z

Practical benefits

High radial load capacity: The double row angular contact ball design allows you to handle heavy radial loads and tilting moments in demanding conveyor systems.
Built-in metal shield protection: Metal shields on both sides protect the internal components against debris and dust, ensuring smooth and reliable rotation.
Convenient relubrication feature: You can easily add grease through the lubrication hole in the inner ring, keeping maintenance simple and extending service life.

In a nutshell

The right choise for

With the Skf 305707 C-2Z track roller, you ensure smooth and dependable guidance across conveyor systems, cam drives, and linear tracks. Designed with a double-row ball arrangement, this cam roller easily handles heavy radial loads and tilting moments. The cylindrical outer ring profile distributes pressure evenly along flat counter tracks to minimize wear. Dual metal shields effectively protect the internal components from dust and debris. When maintenance is required, the integrated lubrication hole in the inner ring makes relubricating straightforward, keeping your machinery running reliably at all times.

Product information FAQ

€128.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 27 mm
Number of rows: 2
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: Not applicable
Axial clearance: CN (Normal)
Outer ring profile: Cylindrical
Outer diameter: 80 mm

Product description

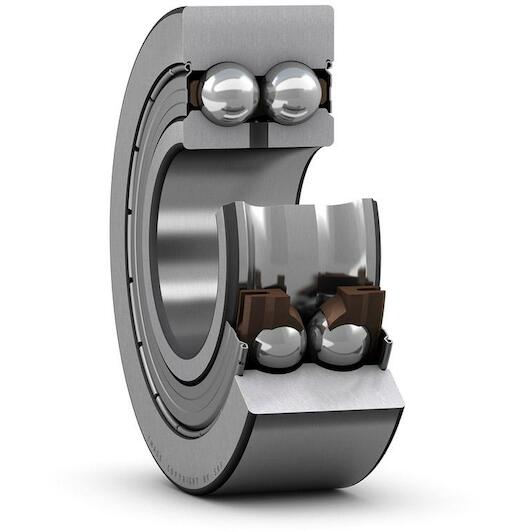

These cam rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on double row angular contact ball bearings. They have a thick-walled outer ring with a flat running surface and are supplied greased, sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

High radial load carrying capacity and relatively high speed capability
Accommodate tilting moments
Long service life
Ready to mount
Integral sealing, for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 27 mm
Number of rows: 2
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: Not applicable
Axial clearance: CN (Normal)
Outer ring profile: Cylindrical
Outer diameter: 80 mm
Basic static load rating: 21.6
Bearing part: Complete track roller
Tolerance class: Normal
Radial internal clearance: Not applicable
Material, bearing: Bearing steel
Relubrication feature: With
Lubricant: Grease
Sealing type: Non-contact
Cage: With
Sealing: Shield on both sides
Functional outside diameter: 80
Axial guidance of outer ring: Yes
Axial internal clearance: Normal
Limiting speed: 5600
Bore diameter: 35
Basic dynamic load rating: 34.5
Coating: Without
Rolling elements: Balls

Brand SKF
01210116
EAN 7316577742674
Supplier number SKF 305707 C-2Z

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF track roller?: This track roller has a 35 mm bore diameter, an 80 mm outside diameter, and a 27 mm width.
What outer ring profile does this roller have?: The outer ring has a cylindrical (flat) outer surface suitable for flat counter tracks.
What type of sealing is integrated into the bearing?: The roller is fitted on both sides with metal shields (indicated by the 2Z suffix).
Can this cam roller be relubricated?: Yes, a lubrication hole in the inner ring allows for easy relubrication.
What applications is the SKF 305707 C-2Z designed for?: It is designed for use in conveyor systems, cam mechanisms, and linear guidance tracks.
