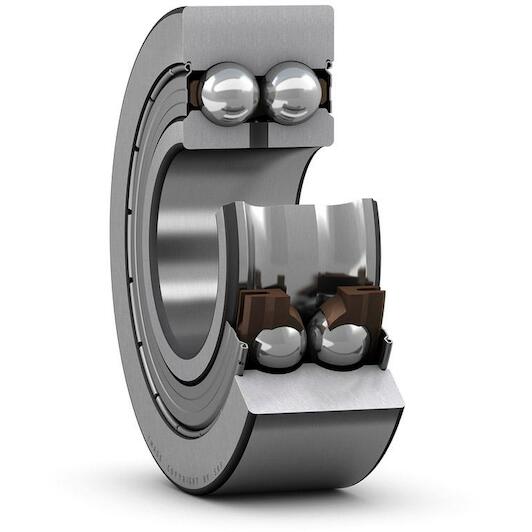

SKF 305802 C-2Z two-row cam roller (Yoke-type idler) 15 x 40 x 15.9 mm

Recommended Retail Price €135.53
66.95 tax incl.
€55.33 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 3 products in stock.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

These cam rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on double row angular contact ball bearings. They have a thick-walled outer ring with a crowned running surface prevents edge stresses under skewing. They are supplied greased, sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

  • High radial load carrying capacity and relatively high speed capability
  • Accommodate tilting moments
  • Long service life
  • Ready to mount
  • Integral sealing, for increased reliability, with relubrication feature
Key features according to our expert
  • Inner diameter: 15 mm
  • Width: 15,9 mm
  • Number of rows: 2
  • Seal (bearing): Double-sided sealed
  • Material (bearing seal): Metal
  • Radial clearance: Not applicable
  • Axial clearance: CN (Normal)
  • Outer ring profile: Spherical
  • Outer diameter: 40 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577742704
  • Supplier number: SKF 305802 C-2Z
Inner diameter
15 mm
Width
15,9 mm
Number of rows
2
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Metal
Radial clearance
Not applicable
Axial clearance
CN (Normal)
Outer ring profile
Spherical
Outer diameter
40 mm
Basic static load rating
5.7
Bearing part
Complete track roller
Tolerance class
Normal (except crowned running surface)
Radial internal clearance
Not applicable
Material, bearing
Bearing steel
Relubrication feature
With
Lubricant
Grease
Sealing type
Non-contact
Cage
With
Sealing
Shield on both sides
Functional outside diameter
40
Axial guidance of outer ring
Yes
Axial internal clearance
Normal
Limiting speed
13000
Bore diameter
15
Basic dynamic load rating
10.8
Coating
Without
Rolling elements
Balls
