SKF

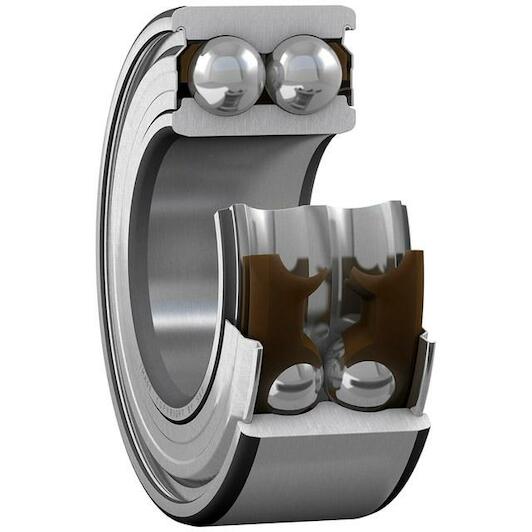

SKF 3202 A-2ZTN9/MT33 double-row angular contact ball bearing 15 x 35 x 15.9 mm with 30° contact angle

Recommended Retail Price €98.52
48.60 tax incl.
€40.16 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 4 products in stock.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life
Key features according to our expert
  • Inner diameter: 15 mm
  • Width: 15,9 mm
  • Number of rows: 2
  • Axial clearance: CN (Normal)
  • Seal (bearing): Double-sided sealed
  • Material (bearing seal): Metal
  • Material (cage): Plastic
  • Outer diameter: 35 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570248449
  • Supplier number: SKF 3202 A-2ZTN9/MT33
Inner diameter
15 mm
Width
15,9 mm
Number of rows
2
Axial clearance
CN (Normal)
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Metal
Material (cage)
Plastic
Outer diameter
35 mm
Matched arrangement
No
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Basic static load rating
6.8
Sealing type
Non-contact
Relubrication feature
Without
Reference speed
22000
Lubricant
Grease
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Non-metallic
Material, bearing
Bearing steel
Sealing
Shield on both sides
Bore diameter
15
Axial internal clearance
CN
Contact angle
30
Limiting speed
18000
Basic dynamic load rating
11.2
Coating
Without
Outside diameter
35
Universal matching bearing
No
