What are the dimensions of this SKF angular contact ball bearing?

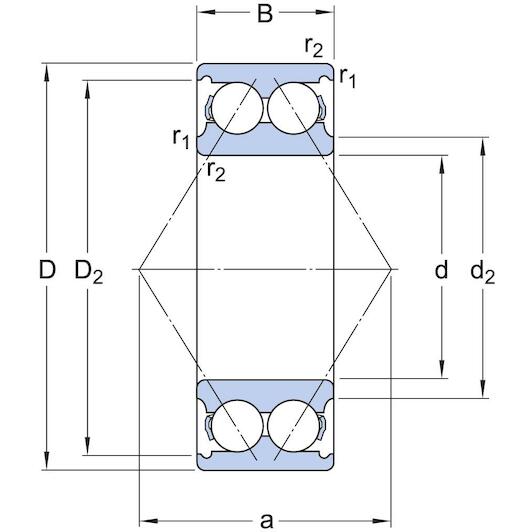

The bearing has a 15 mm bore, a 35 mm outer diameter, and a width of 15.9 mm.

What types of loads can this double-row bearing handle?

It accommodates combined radial loads and axial loads in both directions with its 30° contact angle.

Does this SKF bearing have integrated seals?

No, this is an open bearing without built-in seals.

What material is the cage made of?

It features a glass-fibre reinforced polyamide cage (plastic, indicated by the TN9 suffix).

What is the internal clearance of this bearing?

It has standard normal internal clearance (designated as CN).

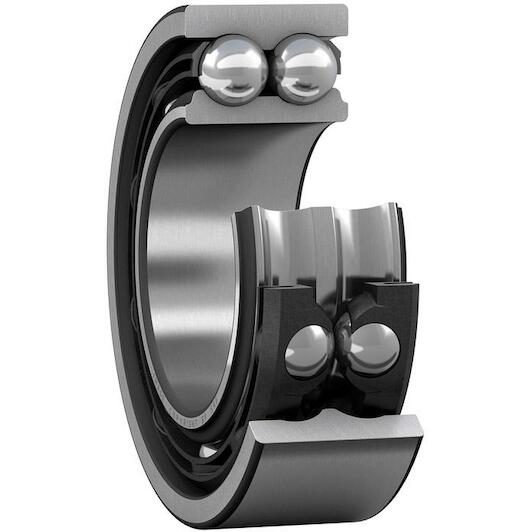

SKF 3202 ATN9 double-row angular contact ball bearing 15 x 35 x 15.9 mm with 30° contact angle

Supplier number: SKF 3202 ATN9 | EAN 7316577039644

Recommended Retail Price €87.31

43.20 tax incl.

€35.70 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered tomorrow 13/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Robust performance with Skf ball bearing

Practical benefits

Handles high combined loads: You can support simultaneous radial and bilateral axial forces easily within a single compact bearing assembly.
Smooth high speed operation: The lightweight polyamide cage reduces friction and operational noise, keeping your machinery running smoothly at elevated speeds.
Rigid and space saving design: A 30° contact angle provides the rigidity you need while occupying less axial space than paired single-row bearings.

In a nutshell

The right choise for

With the Skf 3202 ATN9 double-row angular contact ball bearing, you ensure dependable shaft support in demanding, space-restricted machinery. Engineered with a 30° contact angle, this open bearing effortlessly handles heavy radial forces and bidirectional axial loads at the same time. The lightweight glass-fibre reinforced polyamide cage minimizes operational friction and noise, keeping your equipment running smoothly and efficiently at high rotational speeds. Measuring 15 x 35 x 15.9 mm with normal internal clearance, it delivers high rigidity and performance for gearboxes, pumps, and industrial drive systems.

Product information FAQ

€43.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 15 mm
Width: 15,9 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 35 mm

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 15 mm
Width: 15,9 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 35 mm
Basic static load rating: 6.8
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 22000
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Without
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 18000
Bore diameter: 15
Basic dynamic load rating: 11.2
Coating: Without
Outer diameter: 35
Universal matching bearing: No

Brand SKF
01050003
EAN 7316577039644
Supplier number SKF 3202 ATN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact ball bearing?: The bearing has a 15 mm bore, a 35 mm outer diameter, and a width of 15.9 mm.
What types of loads can this double-row bearing handle?: It accommodates combined radial loads and axial loads in both directions with its 30° contact angle.
Does this SKF bearing have integrated seals?: No, this is an open bearing without built-in seals.
What material is the cage made of?: It features a glass-fibre reinforced polyamide cage (plastic, indicated by the TN9 suffix).
What is the internal clearance of this bearing?: It has standard normal internal clearance (designated as CN).
