skf_3203a_2rs1tn9
SKF

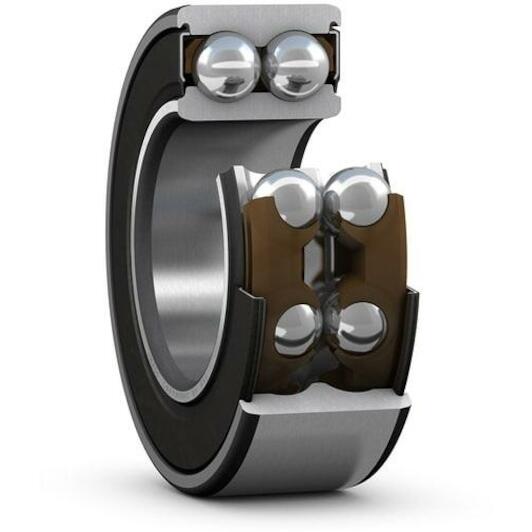

SKF 3203 A-2RS1TN9 double-row angular contact ball bearing with seal on both sides 17 mm

Recommended Retail Price €99.49
49.20 tax incl.
€40.66 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life
Key features according to our expert
  • Inner diameter: 17 mm
  • Axial clearance: CN (Normal)
  • Outer diameter: 40 mm
  • Number of rows: 2
  • Width: 17,5 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577651624
  • Supplier number: SKF 3203 A-2RS1TN9
Inner diameter
17 mm
Axial clearance
CN (Normal)
Outer diameter
40 mm
Number of rows
2
Width
17,5 mm
Material, bearing
Bearing steel
Cage
Non-metallic
Sealing type
Contact
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
8.8
Contact type
Normal contact (two-point contact)
Ring type
One-piece inner and outer rings
Locating feature, bearing outer ring
None
Sealing
Seal on both sides
Lubricant
Grease
Limiting speed
12000
Axial internal clearance
CN
Contact angle
30
Bore diameter
17
Basic dynamic load rating
14.3
Coating
Without
Outside diameter
40
Universal matching bearing
No
