What are the dimensions of this SKF angular contact ball bearing?

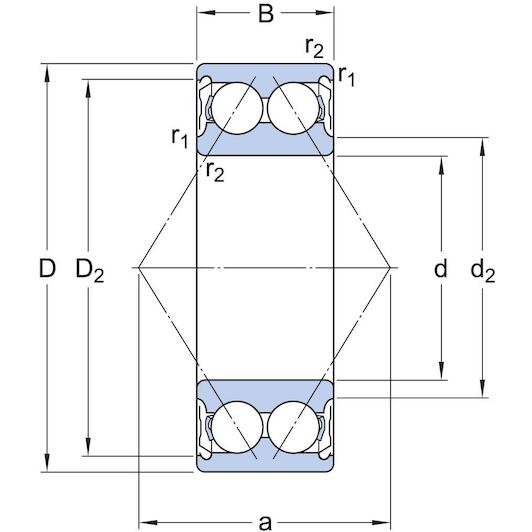

The bearing has a 17 mm bore diameter, a 40 mm outside diameter, and a width of 17.5 mm.

What types of loads can this bearing accommodate?

With a 30° contact angle, this double-row bearing handles radial loads and axial loads in both directions.

What does the 2Z designation mean?

The 2Z suffix indicates non-contact metal shields on both sides to protect against contaminants.

What material is used for the bearing cage?

The TN9 suffix indicates a cage made of glass-fibre reinforced polyamide polymer.

What internal clearance does this bearing have?

This bearing features standard normal axial internal clearance (CN).

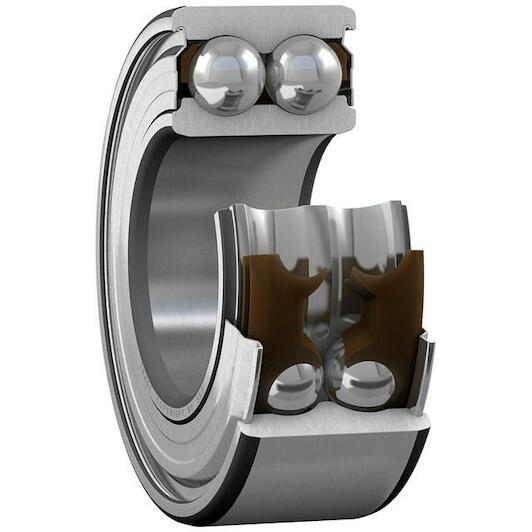

SKF 3203 A-2ZTN9/MT33 double-row angular contact ball bearing 17 x 40 x 17.5 mm with contact angle 30°

Supplier number: SKF 3203 A-2ZTN9/MT33 | EAN 7316570698152

Recommended Retail Price €99.57

49.20 tax incl.

€40.66 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 13/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Robust performance with 3203 A-2ZTN9/MT33

Practical benefits

High combined load capacity: You effortlessly accommodate simultaneous radial and bidirectional axial loads thanks to the double-row layout with a 30° contact angle.
Effective dual shield protection: You keep dust and debris out while retaining grease inside for reliable and long-lasting mechanical operation.
Smooth low-friction rotation: You benefit from reduced friction, quieter operation, and extended service life due to the lightweight polymer cage.

In a nutshell

The right choise for

With the Skf 3203 A-2ZTN9/MT33 double-row angular contact ball bearing, you ensure dependable performance in compact machinery and drive systems. Built with a 30° contact angle, it effortlessly accommodates heavy radial loads and bidirectional axial forces simultaneously. Dual metal shields keep dust and debris out while retaining factory lubrication inside, eliminating the need for periodic relubrication. The lightweight polymer cage ensures smooth, low-friction operation and quiet running. Measuring 17 x 40 x 17.5 mm with standard normal clearance, this bearing is ideal for pumps, compressors, electric motors, and gearboxes.

Product information FAQ

€49.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 17 mm
Width: 17,5 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 40 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 17 mm
Width: 17,5 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 40 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 8.8
Sealing type: Non-contact
Relubrication feature: Without
Reference speed: 19000
Lubricant: Grease
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Shield on both sides
Bore diameter: 17
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 16000
Basic dynamic load rating: 14.3
Coating: Without
Outer diameter: 40
Universal matching bearing: No

Brand SKF
01050358
EAN 7316570698152
Supplier number SKF 3203 A-2ZTN9/MT33

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact ball bearing?: The bearing has a 17 mm bore diameter, a 40 mm outside diameter, and a width of 17.5 mm.
What types of loads can this bearing accommodate?: With a 30° contact angle, this double-row bearing handles radial loads and axial loads in both directions.
What does the 2Z designation mean?: The 2Z suffix indicates non-contact metal shields on both sides to protect against contaminants.
What material is used for the bearing cage?: The TN9 suffix indicates a cage made of glass-fibre reinforced polyamide polymer.
What internal clearance does this bearing have?: This bearing features standard normal axial internal clearance (CN).
