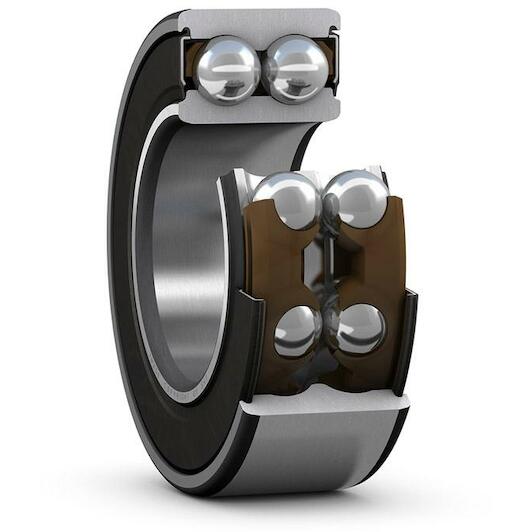

SKF 3206 A-2RS1TN9/C3MT33 double-row angular contact ball bearing 30 x 62 x 23.8 mm with contact angle 30°

Supplier number: SKF 3206 A-2RS1TN9/C3MT33 | EAN 7316570738353

Recommended Retail Price €167.84

82.95 tax incl.

€68.55 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 30/09/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Heavy load support by Skf

Practical benefits

Dual sided seal protection: The built-in rubber seals on both sides keep grease inside while shielding internal components from dust and external contamination.
Combined dual direction loads: With a double-row design and a 30° contact angle, you reliably support heavy radial forces and bidirectional axial loads.
Smooth high speed rotation: The durable polymer cage combined with C3 internal clearance ensures you maintain steady performance during thermal expansion and high-speed operation.

In a nutshell

The right choise for

With the Skf 3206 A-2RS1TN9/C3MT33 double-row angular contact ball bearing, you ensure dependable performance for rotating shafts in pumps, gearboxes, and electric motors. Featuring a double-row design and a 30° contact angle, it easily accommodates heavy radial forces and bidirectional axial loads within a compact 30 x 62 x 23.8 mm envelope. Built-in 2RS1 rubber contact seals on both sides retain lubricant while shielding internal components from dust and moisture. Its lightweight TN9 glass-fibre reinforced polyamide cage and increased C3 internal clearance maintain smooth, quiet operation without binding, even during elevated thermal expansion and high-speed running.

Product information FAQ

€82.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 23,8 mm
Number of rows: 2
Axial clearance: C3
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 62 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

All Features

Inner diameter: 30 mm
Width: 23,8 mm
Number of rows: 2
Axial clearance: C3
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 62 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 22
Sealing type: Contact
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal on both sides
Bore diameter: 30
Axial internal clearance: C3
Contact angle: 30
Limiting speed: 7500
Basic dynamic load rating: 30.5
Coating: Without
Outside diameter: 62
Universal matching bearing: No

Brand SKF
01050517
EAN 7316570738353
Supplier number SKF 3206 A-2RS1TN9/C3MT33

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact ball bearing?: The bearing has a 30 mm bore diameter, a 62 mm outer diameter, and a width of 23.8 mm.
What types of loads can this double-row bearing handle?: With its 30° contact angle, it accommodates heavy radial loads and axial loads in both directions simultaneously.
What does the C3 clearance designation mean?: C3 indicates greater internal clearance than standard, suitable for higher rotational speeds and thermal expansion.
Is this SKF bearing sealed against dirt and dust?: Yes, the 2RS1 designation means it features contact rubber seals on both sides to retain grease and keep out contaminants.
What material is the bearing cage made of?: The cage (TN9 designation) is made of glass-fiber reinforced polyamide.
