What are the dimensions of this angular contact ball bearing?

It has an inside diameter of 30 mm, an outside diameter of 62 mm, and a width of 23.8 mm.

What loads can this SKF bearing accommodate?

With two rows and a 30° contact angle, it supports simultaneous radial loads and axial forces in both directions.

What sealing does this bearing have?

The bearing features non-contact metal shields on both sides (2Z) to retain grease and keep contaminants out.

What material is the cage made of?

The cage (TN9) is made of glass-fibre reinforced polyamide.

What internal clearance does this bearing have?

It features standard normal internal clearance (designated as CN).

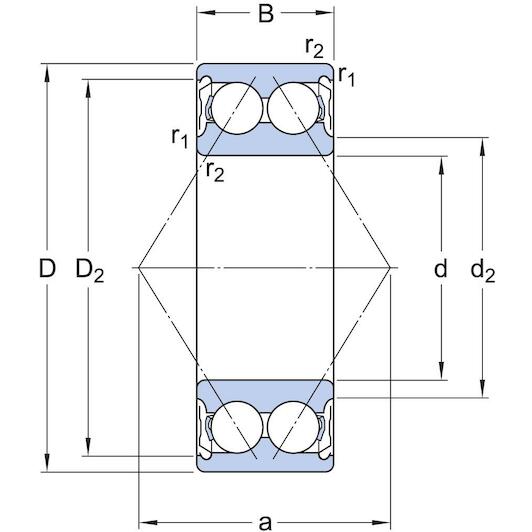

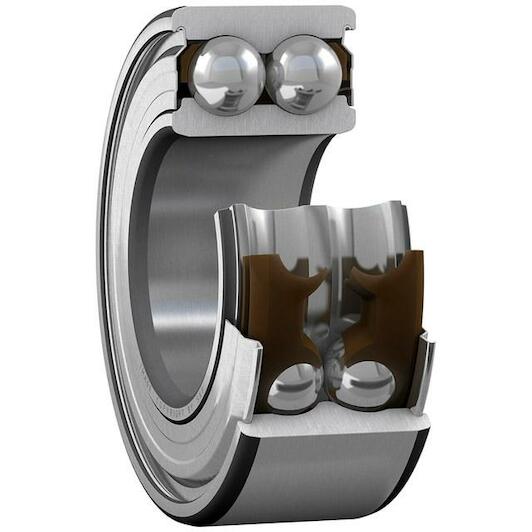

SKF 3206 A-2ZTN9/MT33 double-row angular contact ball bearing 30 x 62 x 23.8 mm with contact angle 30°

Supplier number: SKF 3206 A-2ZTN9/MT33 | EAN 7316570609059

Recommended Retail Price €153.86

75.95 tax incl.

€62.77 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered tomorrow 13/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Precise performance by Skf

Practical benefits

Dual direction axial support: You support high radial loads and bidirectional axial forces efficiently with the double-row setup.
Compact space-saving design: This angular contact ball bearing requires less axial mounting space than two single-row bearings.
Extended service life: Thanks to metal shields on both sides, you keep lubricants protected and maximize operating durability.

In a nutshell

The right choise for

Reliably support demanding combined loads with the Skf 3206 A-2ZTN9/MT33 double row angular contact ball bearing. Featuring a 30° contact angle and a two-row design, it effortlessly accommodates simultaneous radial loads and bidirectional axial forces. With compact dimensions of 30 x 62 x 23.8 mm, this bearing saves valuable axial mounting space compared to two individual bearings, making it ideal for gearboxes, pumps, and compressors. Dual 2Z metal shields retain lubricant and protect against contaminants, while the glass-fibre reinforced TN9 polyamide cage ensures quiet and smooth operation to maximize service life.

Product information FAQ

€75.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 23,8 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 62 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 23,8 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 62 mm
Relubrication feature: Without
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 22
Matched arrangement: No
Sealing type: Non-contact
Reference speed: 10000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing: Shield on both sides
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 30
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 10000
Basic dynamic load rating: 30.5
Coating: Without
Outer diameter: 62
Universal matching bearing: No

Brand SKF
01050364
EAN 7316570609059
Supplier number SKF 3206 A-2ZTN9/MT33

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this angular contact ball bearing?: It has an inside diameter of 30 mm, an outside diameter of 62 mm, and a width of 23.8 mm.
What loads can this SKF bearing accommodate?: With two rows and a 30° contact angle, it supports simultaneous radial loads and axial forces in both directions.
What sealing does this bearing have?: The bearing features non-contact metal shields on both sides (2Z) to retain grease and keep contaminants out.
What material is the cage made of?: The cage (TN9) is made of glass-fibre reinforced polyamide.
What internal clearance does this bearing have?: It features standard normal internal clearance (designated as CN).
