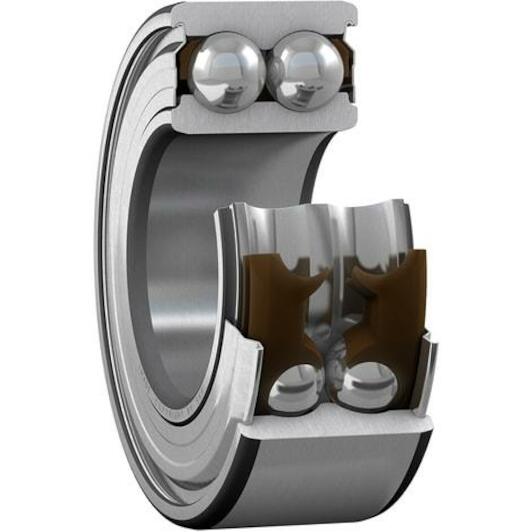

SKF 3208 A-2ZTN9/C3GE2 double-row angular contact ball bearing with protective plates on both sides 40 mm

SKF
Supplier number: SKF 3208 A-2ZTN9/C3GE2 | EAN 7316577248688
Recommended Retail Price €273.28
135.20 tax incl.
€111.74 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/10/2026

  • Ordered before 20:00 - delivered as of 23/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
✆ Talk to a specialist


Product information
€135.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 40 mm
  • Axial clearance: C3
  • Outer diameter: 80 mm
  • Number of rows: 2
  • Width: 30,2 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life

All Features

Inner diameter
40 mm
Axial clearance
C3
Outer diameter
80 mm
Number of rows
2
Width
30,2 mm
Material, bearing
Bearing steel
Cage
Non-metallic
Sealing type
Non-contact
Lubricant
Grease
Sealing
Shield on both sides
Reference speed
9000
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
36.5
Contact type
Normal contact (two-point contact)
Ring type
One-piece inner and outer rings
Locating feature, bearing outer ring
None
Skf performance class
SKF Explorer
Contact angle
30
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Axial internal clearance
C3
Limiting speed
8000
Bore diameter
40
Basic dynamic load rating
48
Coating
Without
Outer diameter
80
Universal matching bearing
No
  • Brand SKF
  • EAN 7316577248688
  • Supplier number SKF 3208 A-2ZTN9/C3GE2
