skf_3213a_2zc3mt33
SKF

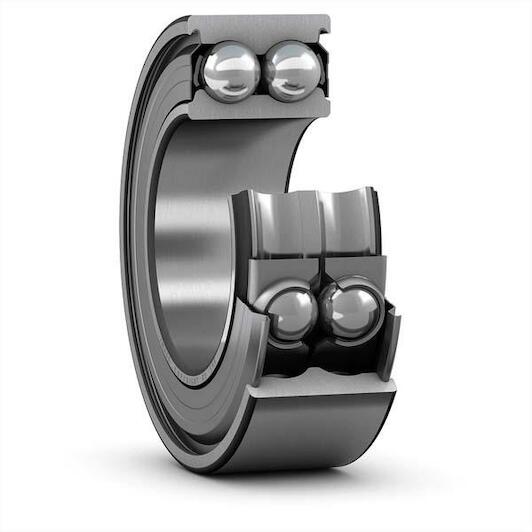

SKF 3213 A-2Z/C3MT33 double-row angular contact ball bearing with protective plates on both sides 65 mm

Recommended Retail Price €794.58
393.20 tax incl.
€324.96 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life
Key features according to our expert
  • Inner diameter: 65 mm
  • Width: 38,1 mm
  • Number of rows: 2
  • Axial clearance: C3
  • Seal (bearing): Double-sided sealed
  • Outer diameter: 120 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571496092
  • Supplier number: SKF 3213 A-2Z/C3MT33
Inner diameter
65 mm
Width
38,1 mm
Number of rows
2
Axial clearance
C3
Seal (bearing)
Double-sided sealed
Outer diameter
120 mm
Matched arrangement
No
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Basic static load rating
73.5
Lubricant
Grease
Relubrication feature
Without
Reference speed
5600
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Sealing type
Non-contact
Cage
Sheet metal
Material, bearing
Bearing steel
Sealing
Shield on both sides
Limiting speed
4800
Axial internal clearance
C3
Contact angle
30
Bore diameter
65
Basic dynamic load rating
80.6
Coating
Without
Outside diameter
120
Universal matching bearing
No
