What are the dimensions of this SKF angular contact ball bearing?

The bearing has an inside diameter of 65 mm, an outside diameter of 120 mm, and a width of 38.1 mm.

What loads can this bearing accommodate?

This double-row bearing accommodates radial loads as well as axial loads in both directions.

What does the C3 designation mean?

C3 indicates an internal clearance greater than normal, suitable for thermal expansion or high rotational speeds.

Is this SKF 3213 A/C3 bearing sealed?

No, this is an open design without built-in seals or shields.

What is the contact angle of this bearing?

The contact angle is 30° in a back-to-back arrangement.

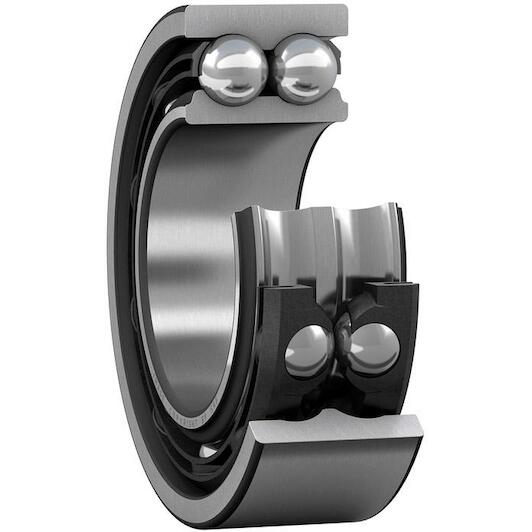

SKF 3213 A/C3 double-row angular contact ball bearing 65 x 120 x 38.1 mm with contact angle 30°

Supplier number: SKF 3213 A/C3 | EAN 7316570067194

Recommended Retail Price €530.72

262.60 tax incl.

€217.02 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

High load stability with Skf

Practical benefits

Dual direction load support: You support combined radial and bidirectional axial loads effortlessly thanks to the double-row layout and 30° contact angle.
Reliable thermal expansion handling: With C3 internal clearance, you ensure smooth continuous operation and prevent binding when internal operating temperatures rise.
Compact and rigid design: You save axial space compared to paired single bearings while the durable sheet metal cage maintains precise ball guidance.

In a nutshell

The right choise for

With the Skf 3213 A/C3 double-row angular contact ball bearing, you establish a rigid and compact shaft arrangement in demanding equipment such as pumps, compressors, and gearboxes. Its double-row configuration with a 30° contact angle accommodates heavy radial and bidirectional axial loads simultaneously, saving valuable axial space compared to paired single bearings. The increased C3 internal clearance prevents binding during thermal expansion and higher operating temperatures. Combined with a robust sheet metal cage, this open 65 x 120 x 38.1 mm bearing provides exceptional tilting stiffness and smooth, dependable operation throughout intensive duty cycles.

Product information FAQ

€262.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Width: 38,1 mm
Number of rows: 2
Axial clearance: C3
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (sheet)
Outer diameter: 120 mm

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Width: 38,1 mm
Number of rows: 2
Axial clearance: C3
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (sheet)
Outer diameter: 120 mm
Basic static load rating: 73.5
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 5600
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Sheet metal
Material, bearing: Bearing steel
Sealing: Without
Axial internal clearance: C3
Contact angle: 30
Limiting speed: 4800
Bore diameter: 65
Basic dynamic load rating: 80.6
Coating: Without
Outer diameter: 120
Universal matching bearing: No

Brand SKF
01050349
EAN 7316570067194
Supplier number SKF 3213 A/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact ball bearing?: The bearing has an inside diameter of 65 mm, an outside diameter of 120 mm, and a width of 38.1 mm.
What loads can this bearing accommodate?: This double-row bearing accommodates radial loads as well as axial loads in both directions.
What does the C3 designation mean?: C3 indicates an internal clearance greater than normal, suitable for thermal expansion or high rotational speeds.
Is this SKF 3213 A/C3 bearing sealed?: No, this is an open design without built-in seals or shields.
What is the contact angle of this bearing?: The contact angle is 30° in a back-to-back arrangement.
