SKF

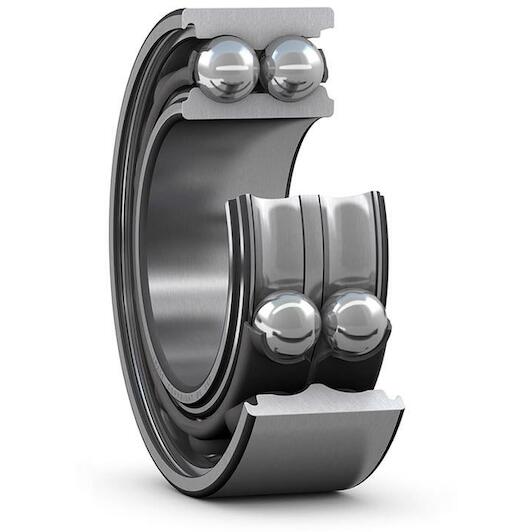

SKF 3214 A double-row angular contact ball bearing 70 x 125 x 39.7 mm with contact angle 30°

Recommended Retail Price €565.05
279.60 tax incl.
€231.07 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
Key features according to our expert
  • Inner diameter: 70 mm
  • Width: 39,7 mm
  • Number of rows: 2
  • Axial clearance: CN (Normal)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (sheet)
  • Outer diameter: 125 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570253665
  • Supplier number: SKF 3214 A
Inner diameter
70 mm
Width
39,7 mm
Number of rows
2
Axial clearance
CN (Normal)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (sheet)
Outer diameter
125 mm
Basic static load rating
80
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
5600
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Sheet metal
Material, bearing
Bearing steel
Sealing
Without
Axial internal clearance
CN
Contact angle
30
Limiting speed
4500
Bore diameter
70
Basic dynamic load rating
88.4
Coating
Without
Outside diameter
125
Universal matching bearing
No
