What are the dimensions of this SKF angular contact ball bearing?

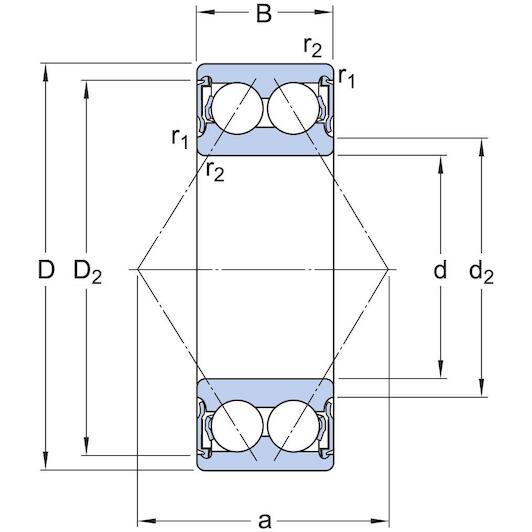

The bearing has a 25 mm bore diameter, a 62 mm outer diameter, and a width of 25.4 mm.

What types of loads can this double-row bearing handle?

It accommodates combined radial loads, axial loads in both directions, and tilting moments.

What does the C3 designation indicate?

The C3 designation indicates that the bearing has greater internal clearance than standard.

How is the bearing sealed against dirt and moisture?

It features rubber contact seals on both sides (2RS1).

What is the contact angle of this bearing?

This bearing features a 30° contact angle.

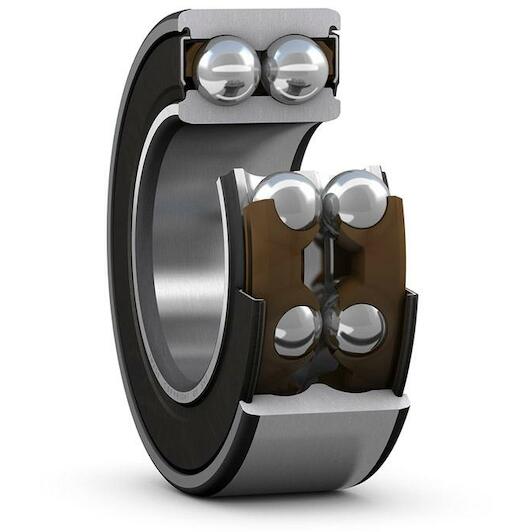

SKF 3305 A-2RS1TN9/C3MT33 double-row angular contact ball bearing 25 x 62 x 25.4 mm with 30° contact angle

Supplier number: SKF 3305 A-2RS1TN9/C3MT33 | EAN 7316571842127

Recommended Retail Price €254.56

125.95 tax incl.

€104.09 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 15/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Reliable rotational performance with Skf

Practical benefits

Superior dual contact seal protection: Integrated rubber seals on both sides protect the internal components against dust and moisture, ensuring you achieve a longer service life.
Handles heavy bidirectional combined loads: The double-row layout with a 30° contact angle allows you to support high radial forces and axial loads in both directions.
Smooth running at high speeds: With built-in C3 internal clearance, you maintain smooth, low-friction operation even under elevated operating temperatures and high rotational speeds.

In a nutshell

The right choise for

With the Skf 3305 A-2RS1TN9/C3MT33 double-row angular contact ball bearing, you ensure dependable rotational performance in compact shaft assemblies and drives. Designed with a 30° contact angle, it accommodates heavy radial loads, bidirectional axial thrust, and tilting moments simultaneously. Built-in rubber contact seals on both sides keep dust, debris, and moisture out of the internal raceways, extending service life without maintenance needs. The C3 internal radial clearance prevents binding under elevated temperatures and high operational speeds, ensuring smooth, low-friction running. It delivers a rigid, durable bearing arrangement ideal for industrial pumps, compressors, and electric motor drives.

Product information FAQ

€125.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 25,4 mm
Number of rows: 2
Axial clearance: C3
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Brass (sheet)
Outer diameter: 62 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

All Features

Inner diameter: 25 mm
Width: 25,4 mm
Number of rows: 2
Axial clearance: C3
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Brass (sheet)
Outer diameter: 62 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 22
Sealing type: Contact
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Sheet metal
Material, bearing: Bearing steel
Sealing: Seal on both sides
Bore diameter: 25
Axial internal clearance: C3
Contact angle: 30
Limiting speed: 7500
Basic dynamic load rating: 32.5
Coating: Without
Outer diameter: 62
Universal matching bearing: No

Brand SKF
01051179
EAN 7316571842127
Supplier number SKF 3305 A-2RS1TN9/C3MT33

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact ball bearing?: The bearing has a 25 mm bore diameter, a 62 mm outer diameter, and a width of 25.4 mm.
What types of loads can this double-row bearing handle?: It accommodates combined radial loads, axial loads in both directions, and tilting moments.
What does the C3 designation indicate?: The C3 designation indicates that the bearing has greater internal clearance than standard.
How is the bearing sealed against dirt and moisture?: It features rubber contact seals on both sides (2RS1).
What is the contact angle of this bearing?: This bearing features a 30° contact angle.
