What are the dimensions of this SKF bearing?

The bearing has a 35 mm bore diameter, an 80 mm outer diameter, and a width of 34.9 mm.

What types of loads can this bearing accommodate?

With two rows of balls and a 30° contact angle, it supports radial loads and axial loads in both directions.

What does the 2RS1 designation mean?

It indicates that the bearing features contact rubber seals on both sides to protect against contamination.

What material is the cage made of?

The TN9 suffix denotes a lightweight and durable cage made of glass-fibre reinforced polyamide (plastic).

Does this bearing require greasing prior to installation?

No, it comes factory pre-lubricated with MT33 grease and is ready to install.

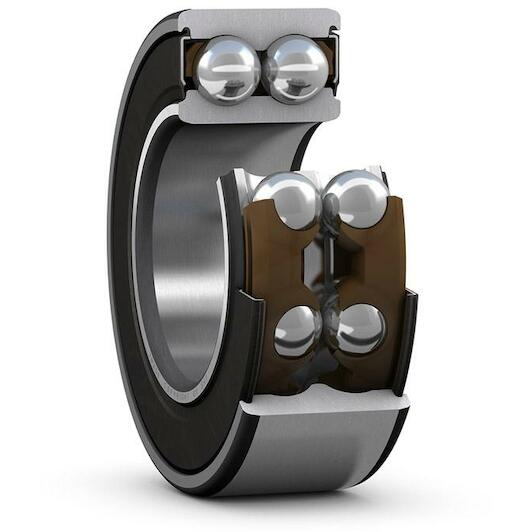

SKF 3307 A-2RS1TN9/MT33 double-row angular contact ball bearing 35 x 80 x 34.9 mm with 30° contact angle

Supplier number: SKF 3307 A-2RS1TN9/MT33 | EAN 7316570924732

Recommended Retail Price €302.02

149.40 tax incl.

€123.47 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 15/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Rigid performance under combined loads

Practical benefits

Double row load capacity: You support high radial loads alongside axial forces in both directions using the integrated double row layout.
Stiff angular contact design: The 30° contact angle provides superior rigidity and effortlessly accommodates tilting moments in tight spaces.
Dual rubber contact seals: Built-in 2RS1 rubber seals protect internal lubrication from contaminants and moisture to extend operational bearing life.

In a nutshell

The right choise for

With the Skf 3307 A-2RS1TN9/MT33, you achieve rigid and dependable operation under combined loading. Featuring a double row design and a 30° contact angle, this angular contact ball bearing effortlessly accommodates heavy radial forces alongside bidirectional axial loads in tight spaces. The lightweight glass-fibre reinforced polyamide cage reduces friction and noise, while the dual 2RS1 rubber contact seals keep out contaminants and moisture. Factory pre-lubricated with MT33 grease, it arrives ready for immediate installation on 35 mm shafts without the need for initial maintenance.

Product information FAQ

€149.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 34,9 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 80 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 34,9 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 80 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 38
Sealing type: Contact
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal on both sides
Bore diameter: 35
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 6000
Basic dynamic load rating: 54
Coating: Without
Outer diameter: 80
Universal matching bearing: No

Brand SKF
01050384
EAN 7316570924732
Supplier number SKF 3307 A-2RS1TN9/MT33

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The bearing has a 35 mm bore diameter, an 80 mm outer diameter, and a width of 34.9 mm.
What types of loads can this bearing accommodate?: With two rows of balls and a 30° contact angle, it supports radial loads and axial loads in both directions.
What does the 2RS1 designation mean?: It indicates that the bearing features contact rubber seals on both sides to protect against contamination.
What material is the cage made of?: The TN9 suffix denotes a lightweight and durable cage made of glass-fibre reinforced polyamide (plastic).
Does this bearing require greasing prior to installation?: No, it comes factory pre-lubricated with MT33 grease and is ready to install.
