skf_3309anrc3
SKF

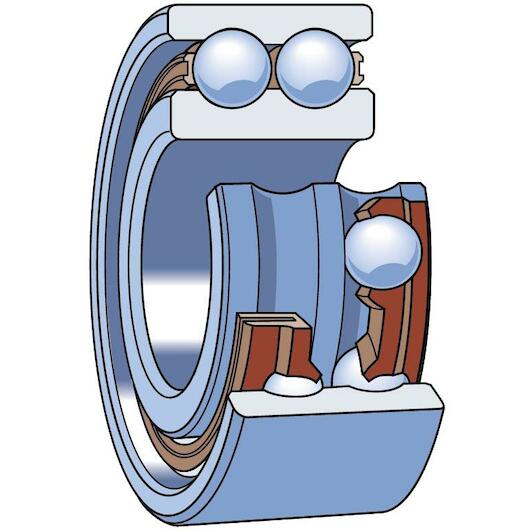

SKF 3309 ANR/C3 double-row angular contact ball bearing 45 x 100 x 39.7 mm with 30° contact angle

Recommended Retail Price €416.18
205.95 tax incl.
€170.21 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 1 products in stock.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space, and are particularly suitable in applications where a stiff bearing arrangement is required. They can accommodate radial loads, axial loads in either direction and tilting moments. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces.

  • High-speed capability
  • Accommodate relatively high radial loads and large axial loads in both directions
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
Key features according to our expert
  • Inner diameter: 45 mm
  • Width: 39,7 mm
  • Number of rows: 2
  • Axial clearance: CN (Normal)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (sheet)
  • Outer diameter: 100 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571396361
  • Supplier number: SKF 3309 ANR/C3
Inner diameter
45 mm
Width
39,7 mm
Number of rows
2
Axial clearance
CN (Normal)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (sheet)
Outer diameter
100 mm
Basic static load rating
53
Locating feature, bearing outer ring
Snap ring (fitted)
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
7500
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Sheet metal
Material, bearing
Bearing steel
Sealing
Without
Axial internal clearance
CN
Contact angle
30
Limiting speed
6300
Bore diameter
45
Basic dynamic load rating
71.5
Coating
Without
Outside diameter
100
Universal matching bearing
No
