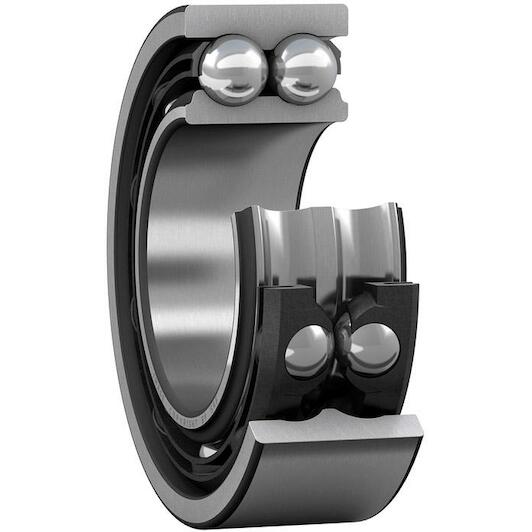

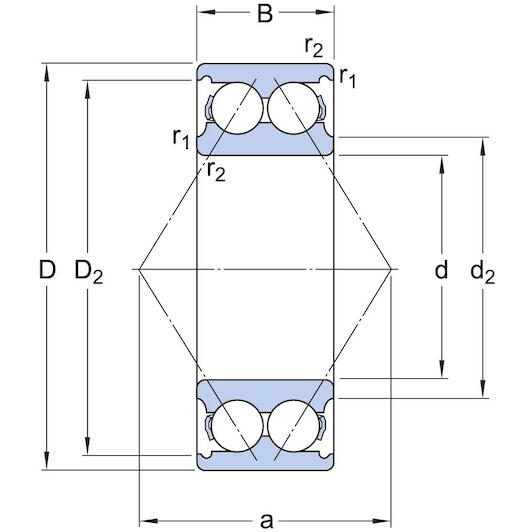

SKF 3309 ATN9/C3 double-row angular contact ball bearing 45 x 100 x 39.7 mm with 30° contact angle

SKF
Supplier number: SKF 3309 ATN9/C3 | EAN 7316571414904
Recommended Retail Price €379.76
187.95 tax incl.
€155.33 excl. VAT (incl. all environmental contributions)
On order: delivered from 19/10/2026

  • Ordered before 20:00 - delivered as of 19/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€187.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 45 mm
  • Width: 39,7 mm
  • Number of rows: 2
  • Axial clearance: C3
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Material (cage): Plastic
  • Outer diameter: 100 mm

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
45 mm
Width
39,7 mm
Number of rows
2
Axial clearance
C3
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Material (cage)
Plastic
Outer diameter
100 mm
Matched arrangement
No
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Basic static load rating
53
Lubricant
None
Relubrication feature
Without
Reference speed
7500
Skf performance class
SKF Explorer
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Non-metallic
Material, bearing
Bearing steel
Sealing
Without
Bore diameter
45
Axial internal clearance
C3
Contact angle
30
Limiting speed
6700
Basic dynamic load rating
75
Coating
Without
Outer diameter
100
Universal matching bearing
No
  • Brand SKF
  • EAN 7316571414904
  • Supplier number SKF 3309 ATN9/C3
